IMSA-13065B-2-20Y901

Headers, Male Pins Overview

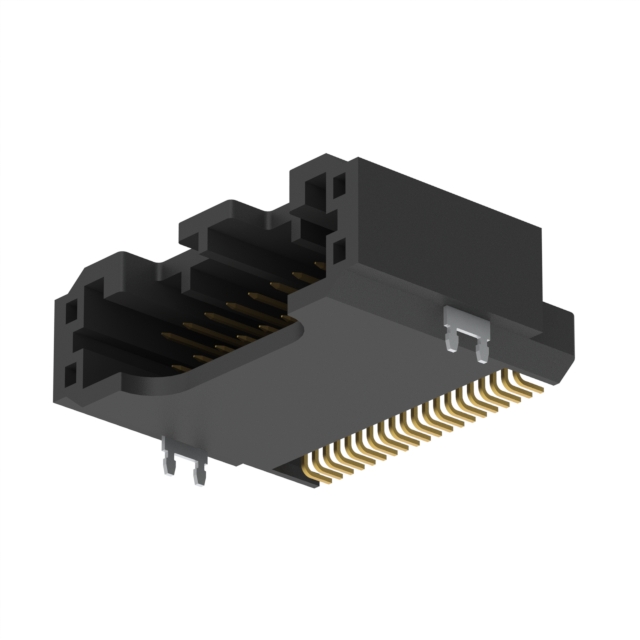

The IMSA-13065B-2-20Y901 is a surface mount right-angle header manufactured by IRISO USA Inc. It features 20 positions with a 2.00mm pitch and two rows of square contacts. The connector utilizes copper alloy pins with tin plating for mating and post surfaces, ensuring reliable electrical connections. Insulation is provided by black polyphenylene sulfide (PPS) material rated UL94 V-0, supporting an operating temperature range of -40°C to 125°C. Rated at 50VAC and 3A, it includes a four-wall shielded housing and positive locking retention mechanisms for secure board-to-cable or board-to-board applications.

Headers, Male Pins Feature Summary

• Positive locking retention mechanism ensures secure connection stability
• Four-wall shielded housing provides comprehensive contact protection
• High heat-resistant PPS insulation supports demanding thermal environments

Headers, Male Pins Applications

• Board-to-cable interconnections requiring right-angle mounting
• Board-to-board connections in compact electronic assemblies
• Wire-to-board interfaces needing robust mechanical retention

Headers, Male Pins Procurement Notes

Verify the specific suffix Y901 against official datasheets to confirm pin configuration and keying options. Ensure compatibility with mating connectors from the same series. Confirm RoHS compliance status if required by project specifications. Check moisture sensitivity level ratings for proper storage and handling procedures during assembly.

Headers, Male Pins Selection Notes

Select this component when a two-row right-angle header with positive locking is required. The 2.00mm pitch suits dense circuit layouts. Consider the 9.30mm insulation height for clearance requirements. Verify that the copper alloy contacts meet conductivity needs. Ensure the PCB footprint matches the surface mount right-angle design specifications.

Headers, Male Pins Part Context

This part belongs to the IMSA-13065B series of wire-to-board connectors. The series offers various position counts and row configurations. It is designed for high-reliability applications requiring secure locking. The manufacturer specializes in precision interconnect solutions for industrial and consumer electronics markets.

Headers, Male Pins Replacement Considerations

Cross-reference with IMSA-13065B-2-24Y901 or IMSA-13065B-2-16Y901 for similar form factors. Verify identical pitch, locking mechanism, and insulation height before substitution. Ensure mating connector compatibility remains unchanged.
