IMSA-13065B-2-20Y902

Headers, Male Pins Overview

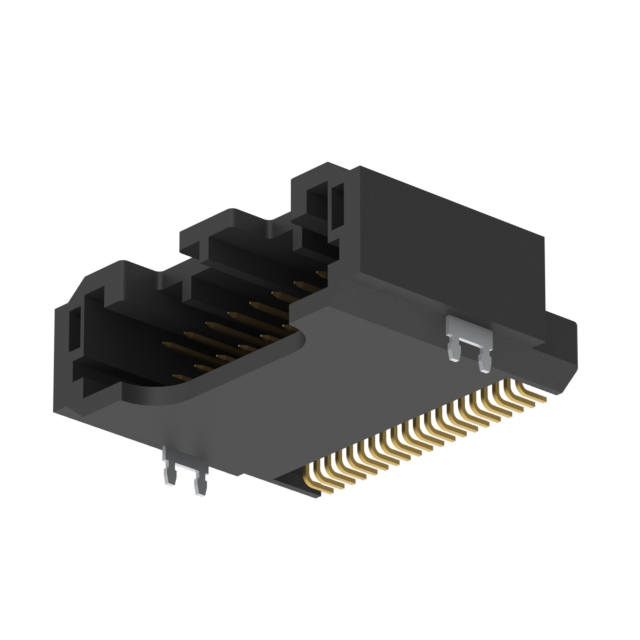

The IMSA-13065B-2-20Y902 is a surface mount right-angle header connector manufactured by IRISO USA Inc. It features 20 positions arranged in two rows with a 2.00mm mating pitch and 2.50mm row spacing. The connector utilizes square male pins with tin plating, housed in black polyphenylene sulfide (PPS) insulation rated UL94 V-0. Designed for board-to-board or cable applications, it includes a four-wall shielded cover and locking ramp retention.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for automated assembly
• Four-wall shielded cover for EMI protection
• Locking ramp retention mechanism
• High-temperature resistant PPS insulation

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• Automotive electronics systems
• Industrial control modules

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to ensure correct pin count and keying configuration. Confirm that the required shielding type matches the application's electromagnetic interference requirements. Check manufacturer datasheets for reflow soldering profile specifications to prevent thermal damage during assembly. Ensure compatible mating connectors are selected based on the specified 2.00mm pitch and locking mechanism.

Headers, Male Pins Selection Notes

Select this component when a right-angle surface mount header with integrated shielding is required. The two-row configuration supports higher density connections within limited board space. Consider the UL94 V-0 rating for fire safety compliance in enclosed assemblies. Verify that the locking ramp feature aligns with the mechanical constraints of the mating device housing.

Headers, Male Pins Part Context

This part belongs to the IRISO 13065B series, designed for high-temperature environments up to +125°C. The series offers various pin counts and configurations optimized for SMT processes. The IMSA-13065B variant specifically denotes the right-angle header style with fixed tail characteristics suitable for robust board mounting.

Headers, Male Pins Replacement Considerations

Direct substitutes include IMSA-13065B-2-20Y900 with identical electrical and mechanical parameters. Verify compatibility with existing PCB footprints and mating connectors before substitution. Cross-reference locking ramp dimensions to ensure secure engagement.
