IMSA-13065B-2-24Y900

Headers, Male Pins Overview

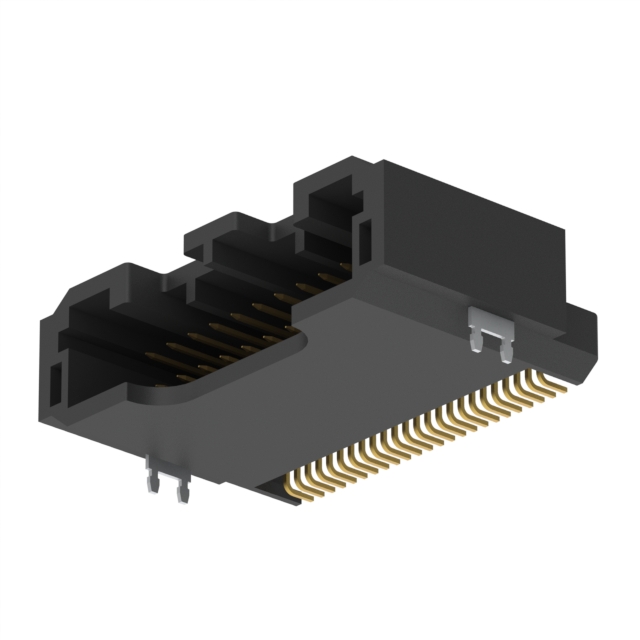

The IMSA-13065B-2-24Y900 is a rectangular connector header manufactured by IRISO USA Inc. It features a surface mount, right-angle termination style with 24 positions arranged in a dual-row configuration. The mating pitch is 0.079 inches (2.00 mm), and the row spacing is 0.098 inches (2.50 mm). The housing is constructed from black polyphenylene sulfide (PPS) with a UL94 V-0 flammability rating. Pins are made of copper alloy with square contact shapes, finished with tin plating at a thickness of 39.4 µin (1.00 µm). The insulation height is 0.366 inches (9.30 mm).

Headers, Male Pins Feature Summary

• Features a positive locking mechanism utilizing slide-lock pins for secure retention.
• Incorporates a four-wall shielded shroud design to protect contacts.
• Utilizes fixed solder tails optimized for reliable surface mount assembly.

Headers, Male Pins Applications

• Board-to-board interconnections
• Board-to-cable connections
• Wire-to-board applications

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required pin count and keying configuration before ordering. Confirm that the surface mount footprint aligns with the PCB layout specifications. Ensure compliance with RoHS3 standards if required by the project. Check moisture sensitivity level classifications for proper storage handling procedures.

Headers, Male Pins Selection Notes

Select this component when a dual-row header with a 2.00 mm pitch is necessary for right-angle mounting. Consider the fixed solder tail design for automated surface mount processes. Evaluate the four-wall shroud requirement for enhanced contact protection during mating cycles.

Headers, Male Pins Part Context

This component belongs to the 13065B series of wire-to-board connectors. The series is characterized by a 2 mm pitch and positive locking capabilities. It is designed for applications requiring robust mechanical retention and reliable electrical performance in compact spaces.

Headers, Male Pins Replacement Considerations

Consult official manufacturer documentation for verified substitute part numbers within the same series or compatible families. Do not assume interchangeability based on generic specifications alone.
