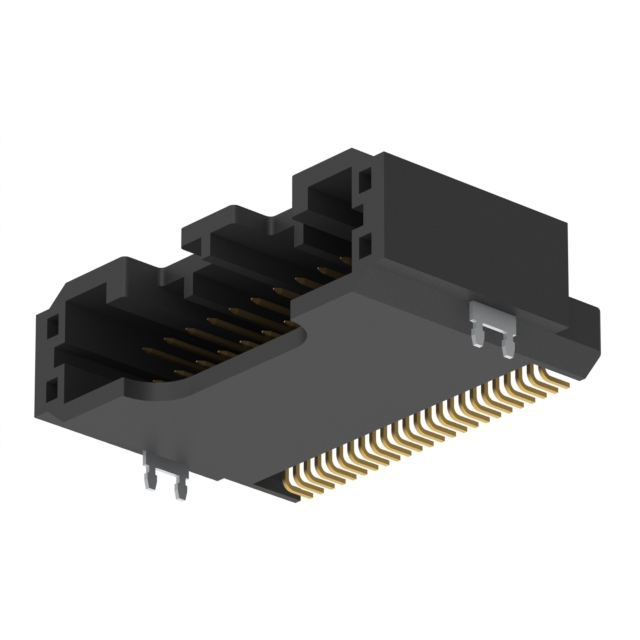

IMSA-13065B-2-24Y901

$1.50

Description：HEADER SMT RA 24POS KEY-B
Series：13065B
Mfr：IRISO USA Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3a31fc17e196 Category: Headers, Male Pins Brand: IRISO USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

IMSA-13065B-2-24Y901 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists IRISO USA Inc.. Its product description is HEADER SMT RA 24POS KEY-B. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for IMSA-13065B-2-24Y901

Description：HEADER SMT RA 24POS KEY-B
Series：13065B
Mfr：IRISO USA Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：24
Number of Rows：2
Row Spacing - Mating：0.098" (2.50mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.366" (9.30mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：39.4µin (1.00µm)
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Polyphenylene Sulfide (PPS)
Features：Solder Retention
Operating Temperature：-
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for IMSA-13065B-2-24Y901

IMSA-13065B-2-24Y901

Headers, Male Pins Overview

The IMSA-13065B-2-24Y901 is a surface mount right-angle header manufactured by IRISO USA Inc. It features 24 positions arranged in a dual row with a 2.00mm mating pitch and 2.50mm row spacing. The connector utilizes square male pins with tin plating, housed in black PPS insulation rated UL94 V-0. Designed for board-to-board or cable applications, it includes a four-wall shielded cover and employs a locking pin slide fastening mechanism.

Headers, Male Pins Feature Summary

Surface mount right-angle design for compact PCB integration
Four-wall shielded cover for electromagnetic interference protection
Locking pin slide mechanism ensures secure mating retention

Headers, Male Pins Applications

Board-to-board interconnections
Cable-to-board connections
Automotive electronic modules
Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm position count and keying configuration. Ensure compatibility with mating receptacles regarding pitch and locking style. Confirm RoHS compliance status through official documentation before procurement.

Headers, Male Pins Selection Notes

Select this component for applications requiring rigid right-angle mounting with shielding. Verify that the 2.00mm pitch aligns with system requirements. Ensure the locking pin slide interface matches the counterpart connector design for proper mechanical engagement.

Headers, Male Pins Part Context

This part belongs to the 13065B series of wire-to-board connectors. It shares common family characteristics such as the 2.00mm pitch and PPS material but differs in terminal count and specific packaging options compared to other variants in the lineup.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.00mm pitch, 24-position count, and right-angle SMT form factor. Verify identical locking mechanisms and shielding configurations to ensure functional interchangeability without redesign.
