IMSA-13065B-2-24Y902

Headers, Male Pins Overview

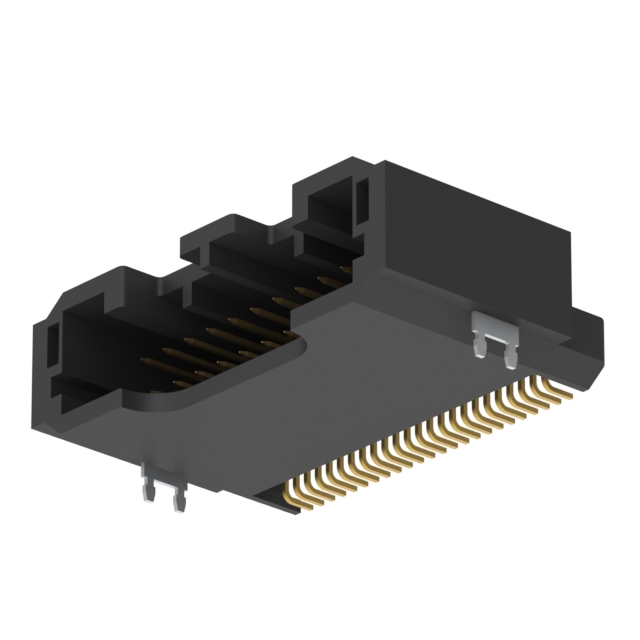

The IMSA-13065B-2-24Y902 is a rectangular connector header manufactured by IRISO USA Inc. It features a surface mount, right-angle termination style with 24 positions arranged in two rows. The mating pitch is 0.079 inches (2.00mm), and the row spacing is 0.098 inches (2.50mm). The housing is constructed from black polyphenylene sulfide (PPS) with an insulation height of 0.366 inches (9.30mm). Contacts are made of copper alloy with square pin shapes and tin plating. The component includes a four-wall shielded cover and utilizes locking pins for retention.

Headers, Male Pins Feature Summary

• Surface mount right-angle design suitable for automated assembly processes
• Four-wall shielded cover provides electromagnetic interference protection
• Polyphenylene sulfide insulation material ensures high thermal stability

Headers, Male Pins Applications

• PCB board-to-board interconnections
• High-temperature electronic environments
• Automated surface mount technology production lines

Headers, Male Pins Procurement Notes

Verify the specific keying configuration associated with the suffix to ensure mechanical compatibility with mating connectors. Confirm that the surface mount footprint matches the manufacturer's recommended land pattern. Check for any required accessory components such as compatible shrouds or mating headers to complete the assembly.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle header is required for space-constrained designs. The two-row configuration allows for higher density connections compared to single-row alternatives. Ensure the operating environment temperature does not exceed the specified rating for the insulating material.

Headers, Male Pins Part Context

This part belongs to the 13065B series, which is characterized by its robust construction and suitability for demanding applications. The series offers various position counts and keying options to accommodate different circuit requirements while maintaining consistent mechanical and electrical performance standards across the product line.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 2.00mm pitch SMT right-angle headers from manufacturers such as Samtec or Molex. Verify that alternative parts match the 24-position count, two-row layout, and shielding requirements before implementation.
