IMSA-13065B-2-28Y900

Headers, Male Pins Overview

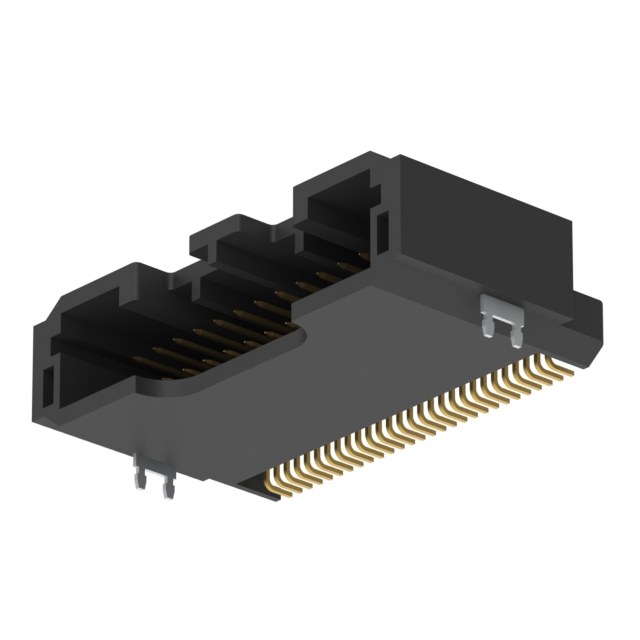

The IMSA-13065B-2-28Y900 is a surface mount, right-angle header manufactured by IRISO USA Inc. It features 28 positions with a 0.079-inch (2.00mm) mating pitch. The connector utilizes square male pins with tin plating and a locking ramp mechanism for secure attachment. Constructed with PPS insulation and rated for 50VAC and 3A, it operates within a temperature range of -40°C to 125°C.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for PCB integration
• Positive locking ramp mechanism for secure connection
• Tin-plated square male pins for reliable contact

Headers, Male Pins Applications

• Automotive electronics systems
• Low-frequency signal interconnects
• Board-to-cable or wire connections

Headers, Male Pins Procurement Notes

Verify the specific pin count and mounting orientation against the target PCB footprint before ordering. Confirm that the required current rating aligns with the application's electrical demands. Ensure compatibility with the mating housing or cable assembly specified in the system design documentation.

Headers, Male Pins Selection Notes

Select this component when a right-angle SMT header with a 2.00mm pitch is required. The 28-position configuration suits applications needing multiple signal lines in a compact form factor. Consider the locking feature if vibration resistance is necessary for the installation environment.

Headers, Male Pins Part Context

This part belongs to the IMSA-13065B series of wire-to-board connectors. The series offers various position counts and mounting styles to accommodate different board layouts. It is designed for low-frequency applications requiring robust mechanical retention.

Headers, Male Pins Replacement Considerations

Cross-reference with other IRISO headers sharing the 2.00mm pitch and locking ramp design. Verify that substitute parts match the 28-position count and right-angle SMT configuration to ensure physical fit.
