IMSA-13065B-2-28Y901

Headers, Male Pins Overview

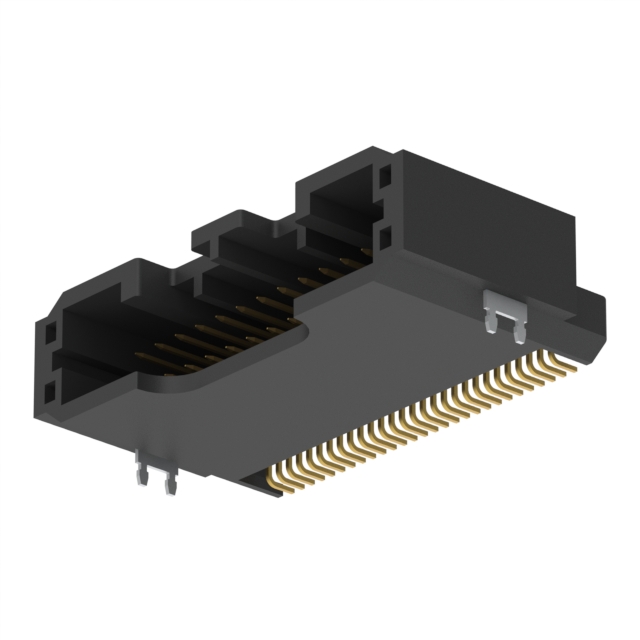

The IMSA-13065B-2-28Y901 is a surface mount right-angle header manufactured by IRISO USA Inc. It features 28 positions with a 2.00mm pitch and two rows. The connector utilizes square male pins made of copper alloy, finished with 1.00µm tin plating. Insulation is provided by black polyphenylene sulfide (PPS) rated UL94 V-0, achieving an insulation height of 9.30mm. Designed for board-to-board or cable applications, it offers four-wall shielding and positive locking retention. The component supports a maximum current of 3A at 50VAC and operates within a temperature range of -40°C to 125°C.

Headers, Male Pins Feature Summary

• Positive locking retention mechanism ensures secure mating stability
• Four-wall shielding provides comprehensive electromagnetic interference protection
• Polyphenylene sulfide insulation material ensures high thermal resistance

Headers, Male Pins Applications

• Board-to-board interconnections in industrial automation systems
• Connections within embedded control modules requiring high reliability
• Surface mount assembly in consumer electronics manufacturing

Headers, Male Pins Procurement Notes

Verify the specific suffix Y901 against official datasheets to confirm pin configuration and keying orientation. Ensure compatibility with mating connectors regarding pitch and row count. Confirm RoHS3 compliance status during final acceptance testing. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and traceability before procurement execution.

Headers, Male Pins Selection Notes

Select this component when a two-row right-angle header is required for space-constrained PCB layouts. The 2.00mm pitch accommodates standard wire gauges while maintaining density. Consider the 9.30mm insulation height for clearance requirements. Evaluate the positive locking feature if vibration resistance is critical. Verify that the operating temperature range meets the environmental demands of the target application scenario.

Headers, Male Pins Part Context

This part belongs to the IMSA-13065B series, designed for automated surface mount technology processes. The series emphasizes high-temperature performance up to 125°C. It serves as a reliable interconnect solution for dense electronic assemblies. The design integrates robust mechanical retention with electrical shielding capabilities.

Headers, Male Pins Replacement Considerations

Compatible substitutes include IMSA-13065B-2-24Y901 and IMSA-13065B-2-28Y901 variants from the same family. Verify identical pitch, row count, and locking mechanisms before substitution.
