IMSA-13065B-2-32Y900

Headers, Male Pins Overview

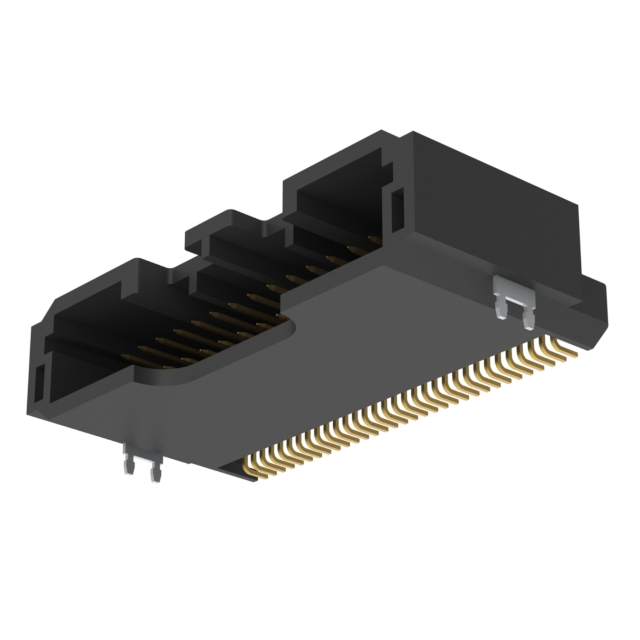

The IMSA-13065B-2-32Y900 is a surface mount right-angle header manufactured by IRISO USA Inc. It features 32 positions with a 2.00mm pitch and two rows. The connector utilizes square male pins with tin plating on both mating and tail sections, each 1.00µm thick. Constructed from PPS insulation rated UL94 V-0, it offers a 9.30mm height and four-wall shielding. Designed for board-to-board or cable applications, it employs a locking pin slide fastening mechanism.

Headers, Male Pins Feature Summary

• Features a positive locking pin slide mechanism to secure mating connections.
• Incorporates four-wall shielding to provide electromagnetic interference protection.
• Utilizes fixed solder tails designed specifically for surface mount assembly processes.

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• Automotive electronic modules

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Y900' against the official datasheet to confirm exact packaging and reel specifications. Ensure compatibility with standard reflow soldering profiles for surface mount technology. Confirm that the selected variant matches the required 32-position count and two-row configuration for the target PCB layout.

Headers, Male Pins Selection Notes

Select this component when a 2.00mm pitch right-angle header with integrated shielding is required. The two-row configuration supports higher density connections compared to single-row alternatives. Verify that the PCB footprint accommodates the 9.30mm insulation height and the specific locking mechanism requirements for the assembly process.

Headers, Male Pins Part Context

This part belongs to the 13065B series of wire-to-board connectors from IRISO USA Inc. The series is characterized by its 2mm pitch and positive locking design. It serves as a robust interconnect solution within the manufacturer's portfolio of automotive and industrial grade components.

Headers, Male Pins Replacement Considerations

Cross-reference with other 13065B series variants such as IMSA-13065B-2-40Y900 for different pin counts. Check IMSA-13065S-2-32Y500 if through-hole mounting is preferred instead of surface mount.

Headers, Male Pins FAQ

What is the material composition of the insulation?

The insulation is made from Polyphenylene Sulfide (PPS) with a UL94 V-0 flammability rating.

Does this connector include shielding?

Yes, the connector features four-wall shielding to enhance signal integrity.
