IMSA-13065B-2-32Y901

Headers, Male Pins Overview

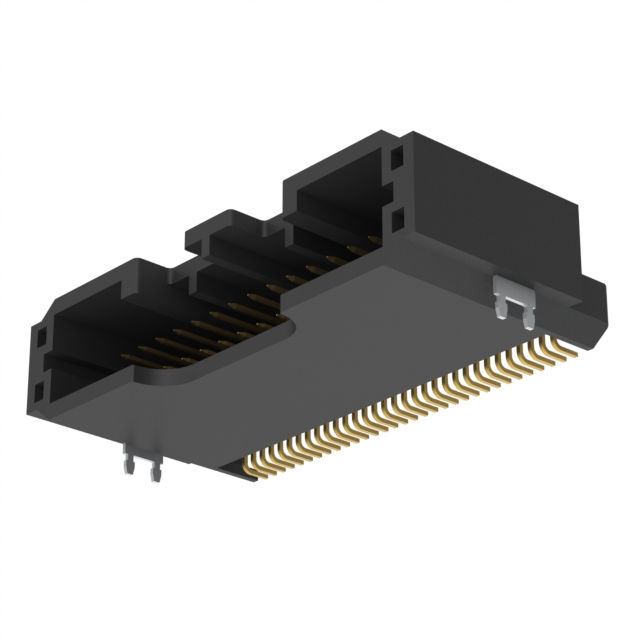

The IMSA-13065B-2-32Y901 is a surface-mount right-angle header connector manufactured by IRISO USA Inc. It features 32 positions arranged in a two-row configuration with a 2.00mm (0.079 inch) mating pitch and 2.50mm (0.098 inch) row spacing. The connector utilizes square-shaped male pin contacts made of copper alloy, finished with tin plating measuring 1.00µm (39.4µin). Constructed with black polyphenylene sulfide (PPS) insulation rated UL94 V-0, it offers an insulation height of 9.30mm (0.366 inch). Designed for board-to-board or cable applications, the unit includes a four-wall shielded cover and employs a locking pin slide fastening mechanism.

Headers, Male Pins Feature Summary

• Surface mount right-angle termination designed for automated assembly processes
• Positive locking pin slide mechanism ensures secure connection retention
• Four-wall shielded cover provides electromagnetic interference protection
• Polyphenylene sulfide insulation material supports high-temperature operation up to +125°C

Headers, Male Pins Applications

• Board-to-board interconnections in electronic assemblies
• Cable-to-board connections requiring right-angle routing
• High-temperature environments demanding thermal stability
• Automated surface mount technology production lines

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 32-position count and Key-B orientation before ordering. Confirm that the surface-mount right-angle footprint aligns with the PCB design specifications. Ensure compatibility with the mating female connector series within the 13065 family. Check for RoHS compliance documentation if environmental regulations apply to the final product assembly.

Headers, Male Pins Selection Notes

Select this component when a two-row right-angle header with 2.00mm pitch is required for space-constrained designs. The positive locking feature distinguishes it from standard headers where vibration resistance is critical. Consider the 9.30mm insulation height for clearance requirements above the PCB. The tin-plated copper alloy contacts offer reliable conductivity for general-purpose signal transmission.

Headers, Male Pins Part Context

This connector belongs to the IRISO 13065B series, which specializes in wire-to-board and board-to-board interconnect solutions. The series is characterized by its robust locking mechanism and suitability for high-temperature applications. The IMSA-13065B-2-32Y901 represents a specific variant within this lineup, defined by its 32-pin capacity and surface-mount form factor, catering to modern electronics manufacturing needs.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other variants within the IRISO 13065B series with matching 2.00mm pitch and two-row configuration. Verify that any replacement maintains the same right-angle surface-mount termination style. Ensure the locking mechanism type remains consistent to preserve mechanical retention properties during operation.
