IMSA-13065B-2-32Y902

Headers, Male Pins Overview

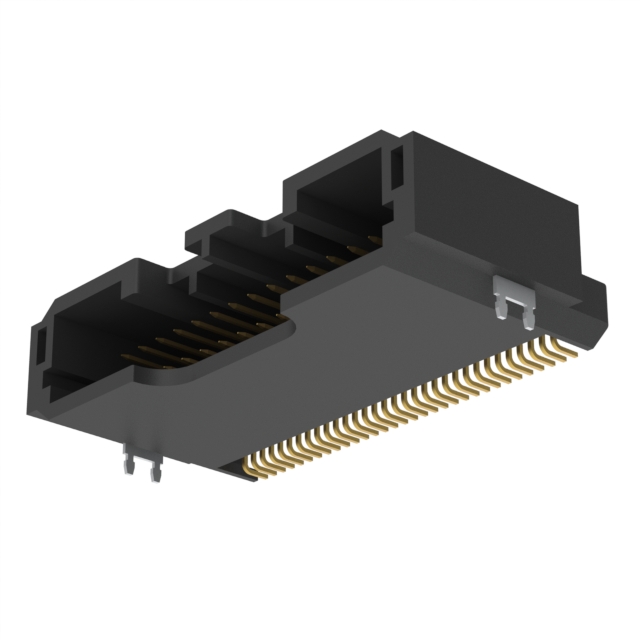

The IMSA-13065B-2-32Y902 is a surface mount right-angle header connector manufactured by IRISO USA Inc. It features 32 positions with a 2.00mm pitch and 2.50mm row spacing. The connector utilizes square pins made of copper alloy with tin plating (1.00µm thickness). Constructed from black PPS insulation rated UL94 V-0, it includes a four-wall shielded housing and locking slide fastening. Designed for board-to-board or cable applications, it supports automatic SMT assembly and operates at temperatures up to +125°C.

Headers, Male Pins Feature Summary

• Right-angle surface mount design optimized for automated assembly processes
• Four-wall shielded housing provides electromagnetic interference protection
• Locking slide mechanism ensures secure mating connection stability
• High-temperature resistant PPS insulation suitable for demanding environments

Headers, Male Pins Applications

• Board-to-board interconnections in electronic assemblies
• Cable-to-board connections requiring right-angle routing
• Automotive electronics systems operating under high thermal conditions
• Industrial control boards utilizing surface mount technology

Headers, Male Pins Procurement Notes

Verify the specific suffix Y902 against official IRISO documentation to confirm pin count, pitch, and orientation match project requirements. Ensure compatibility with reflow soldering profiles specified for PPS materials. Confirm that the four-wall shielding and locking slide features align with enclosure design constraints. Cross-reference the key-C designation to prevent mating errors with incompatible counterparts.

Headers, Male Pins Selection Notes

Select this component when a right-angle SMT header with shielding is required for high-density layouts. The 2.00mm pitch accommodates moderate trace density while maintaining reliable signal integrity. Consider the fixed tail feature for stable PCB anchoring during assembly. Evaluate the +125°C rating against operational thermal cycles to ensure long-term reliability without insulation degradation.

Headers, Male Pins Part Context

This part belongs to the IMSA-13065B series, which offers various position counts ranging from 8 to 40 pins. The series shares common electrical characteristics and mechanical dimensions, differing primarily in contact quantity. The 13065 series is engineered for robust performance in automotive and industrial sectors, emphasizing durability and precise alignment through its locking mechanism.

Headers, Male Pins Replacement Considerations

IMSA-13065B-2-32Y900 serves as a variant within the same series, potentially differing in packaging or minor manufacturing updates. Verify functional equivalence before substitution. No other cross-manufacturer direct replacements are confirmed in public data; alternative selection requires matching all dimensional and electrical parameters.
