IMSA-13065B-2-40Y900

Headers, Male Pins Overview

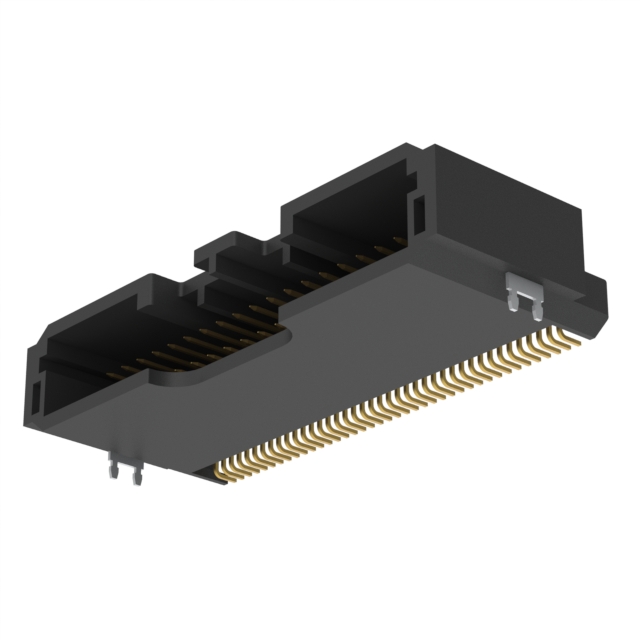

The IMSA-13065B-2-40Y900 is a surface-mount right-angle header manufactured by IRISO USA Inc. It features 40 positions arranged in two rows with a 2.00mm pitch and 2.50mm row spacing. The connector utilizes square pins with tin plating, housed in black PPS insulation rated UL94 V-0. Designed for board-to-board or cable applications, it includes a four-wall shield and locking ramp mechanism.

Headers, Male Pins Feature Summary

• Surface-mount right-angle design with fixed solder tails
• Positive locking ramp mechanism for secure mating
• Four-wall shielded housing for EMI protection
• Full 40-position loading capability

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• Low-frequency signal transmission
• Automotive electronics assemblies

Headers, Male Pins Procurement Notes

Verify the specific keying configuration (Key-A) against mating components to ensure correct orientation. Confirm that the surface-mount footprint matches the target PCB layout. Check RoHS compliance status if required by project specifications. Ensure the locking ramp mechanism aligns with the assembly process requirements.

Headers, Male Pins Selection Notes

Select this component when a high-density 40-position connection is required in a limited vertical space. The right-angle SMT profile suits constrained enclosures. The positive locking feature provides mechanical stability during vibration. Consider the shielding requirements for noise-sensitive environments.

Headers, Male Pins Part Context

This part belongs to the 13065B series of wire-to-board connectors from IRISO. The series offers various pin counts and keying options. The 2.00mm pitch allows for compact circuit board designs while maintaining reliable electrical contact performance across multiple industrial applications.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 40-position 2.00mm pitch headers with similar locking mechanisms. Verify that alternative parts match the 2.50mm row spacing and SMT right-angle form factor. Ensure the replacement maintains the same shielding and keying characteristics.
