IMSA-13065B-2-40Y901

Headers, Male Pins Overview

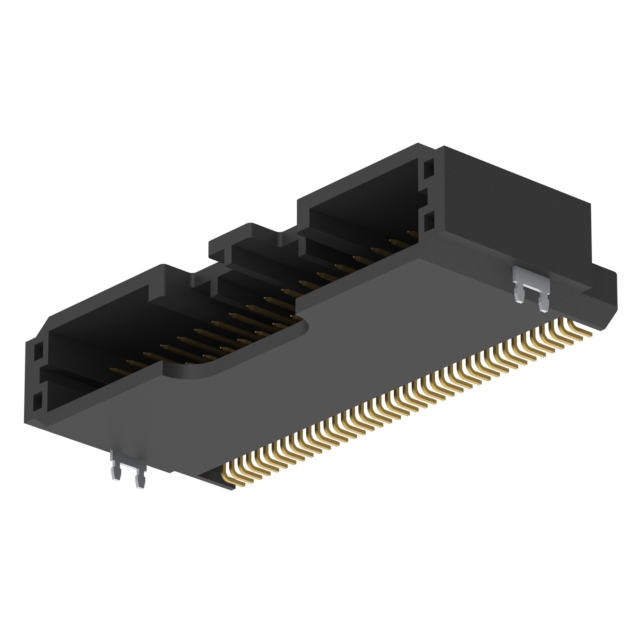

The IMSA-13065B-2-40Y901 is a surface mount right-angle header connector manufactured by IRISO USA Inc. It features 40 positions arranged in two rows with a 2.00mm mating pitch and 2.50mm row spacing. The connector utilizes square male pins made of copper alloy, finished with 1.00µm tin plating for reliable contact. Constructed from black polyphenylene sulfide (PPS) insulation rated UL94 V-0, it offers an insulation height of 9.30mm. Designed for board-to-board or cable applications, this component includes a four-wall shielded cover and employs a locking ramp fastening mechanism.

Headers, Male Pins Feature Summary

• Surface mount right-angle design facilitates automated assembly processes
• Four-wall shielded cover provides electromagnetic interference protection
• Locking ramp mechanism ensures secure mechanical retention

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• High-temperature electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix codes to confirm pin count, keying position, and packaging configuration. Ensure compatibility with the mating female connector series. Confirm that the surface mount footprint matches the target PCB layout requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a high-density two-row header is required for right-angle mounting. Consider the 2.00mm pitch and 40-position capacity for space-constrained designs. Verify thermal resistance capabilities if operating environments exceed standard limits.

Headers, Male Pins Part Context

This part belongs to the 13065B series of wire-to-board and board-to-board connectors. The series is characterized by its robust construction and suitability for high-temperature applications up to +125°C. It represents a standardized solution within IRISO's rectangular connector portfolio for industrial electronics.

Headers, Male Pins Replacement Considerations

Cross-reference with other IMSA-13065B variants for different pin counts. Verify mechanical dimensions and electrical ratings against alternative suppliers' offerings to ensure functional equivalence.
