IMSA-13065B-2-40Y902

Headers, Male Pins Overview

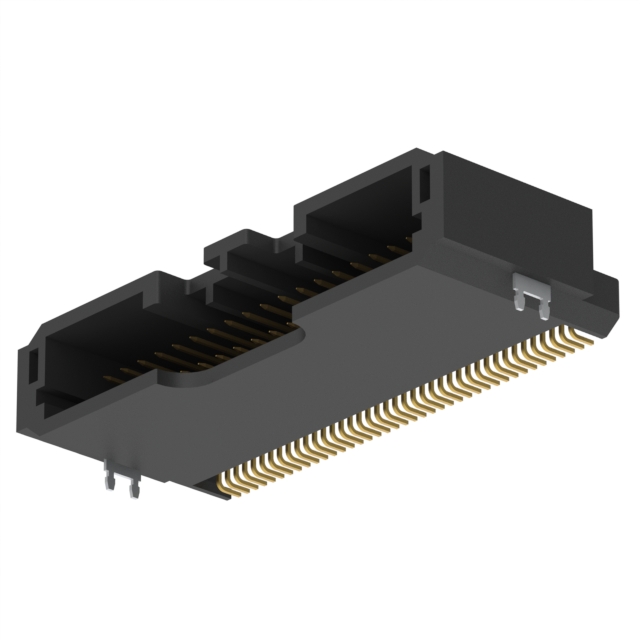

The IMSA-13065B-2-40Y902 is a surface mount right-angle header manufactured by IRISO USA Inc. It features 40 positions arranged in a double-row configuration with a 2.00 mm (0.079 inch) mating pitch and a 2.50 mm (0.098 inch) solder tail pitch. The connector utilizes square male pins with tin plating, specifically 1.00 µm thickness on both the mating contact and post surfaces. Constructed from copper alloy contacts and black PPS insulation rated UL94 V-0, it offers an insulation height of 9.30 mm (0.366 inch). The component includes a four-wall shielded cover and employs a locking pin slide mechanism for secure attachment.

Headers, Male Pins Feature Summary

• Surface mount right-angle design compatible with automated assembly processes
• Four-wall shielded cover provides electromagnetic interference protection
• Locking pin slide mechanism ensures secure mechanical retention

Headers, Male Pins Applications

• Automotive electronics systems
• Industrial automation control units
• Embedded system interconnections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm the exact pin count, row configuration, and termination style required for your PCB layout. Ensure compatibility with the mating housing or cable assembly specifications. Confirm that the surface mount footprint matches the manufacturer's recommended land pattern to guarantee reliable solder joint integrity during reflow processing.

Headers, Male Pins Selection Notes

Select this component when a high-density, shielded connection is required for space-constrained applications. The right-angle orientation facilitates compact board stacking. Verify that the operating temperature range meets the +125°C requirement. Ensure the PCB design accommodates the specific solder tail pitch and insulation height dimensions to prevent mechanical interference.

Headers, Male Pins Part Context

This part belongs to the IRISO 13065 Series, which is engineered for high-temperature environments up to +125°C. The series utilizes Surface Mount Technology for efficient manufacturing. The IMSA-13065B variant specifically denotes the header component within the broader connector ecosystem, designed for robust performance in demanding industrial and automotive sectors.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer for direct equivalents or cross-reference options based on identical electrical and mechanical specifications.
