IMSA-13103B-02Y901

Headers, Male Pins Overview

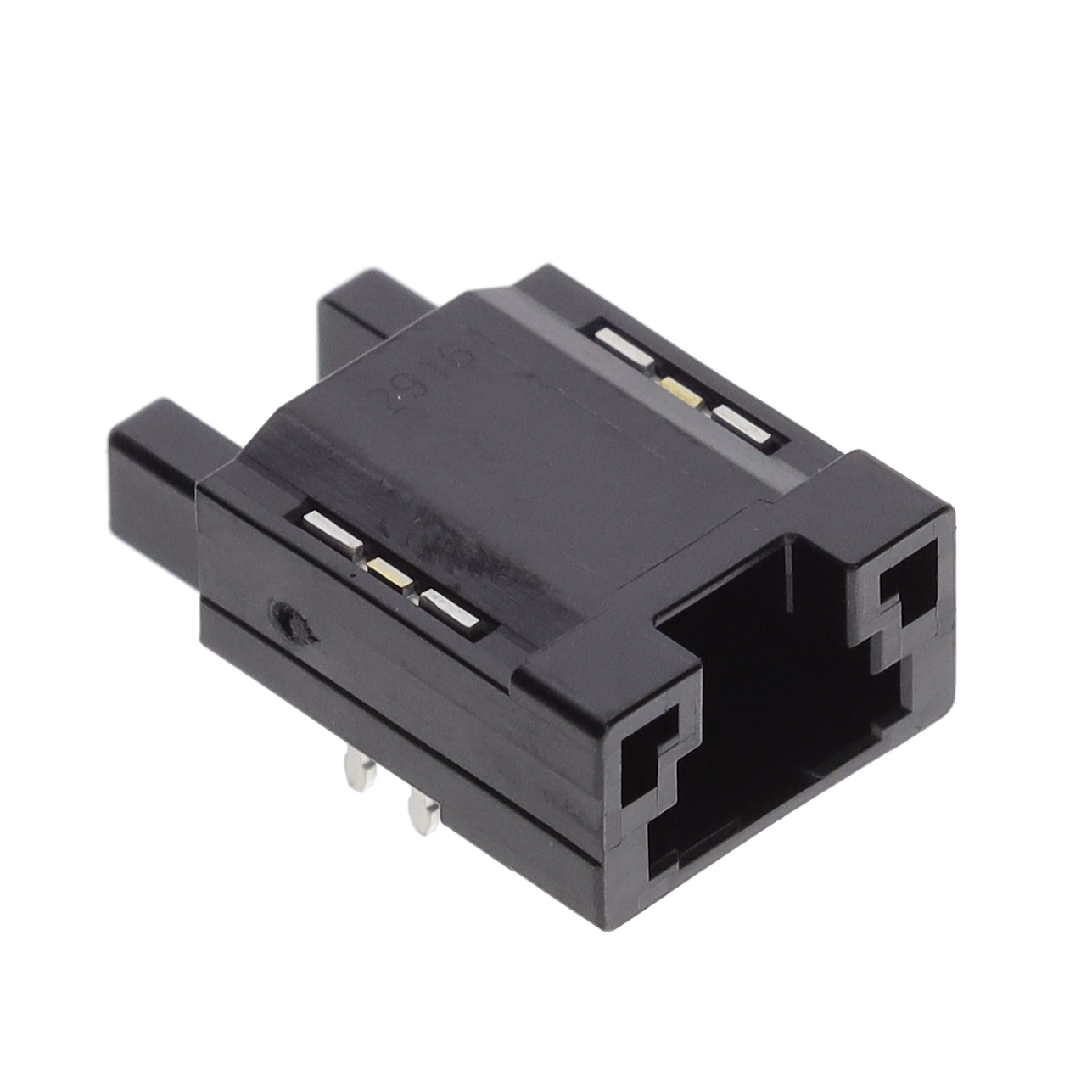

The IMSA-13103B-02Y901 is a surface mount right-angle header manufactured by IRISO USA Inc. It features a 2-position configuration with a 0.079-inch (2.00mm) pitch. The connector utilizes square male pins with tin plating and PPS insulation. Rated for 3A at 50VAC, it operates within a -40°C to 125°C range. The housing is black, and the component includes a locking latch mechanism.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for compact board integration
• Positive locking latch mechanism for secure mating
• Tin-plated square contacts for reliable conductivity
• PPS insulation material for thermal stability

Headers, Male Pins Applications

• Board-to-cable interconnections
• Board-to-wire connections
• Embedded systems assembly
• Industrial automation control units

Headers, Male Pins Procurement Notes

Verify the specific suffix Y901 against the manufacturer datasheet to confirm pin count and orientation. Ensure the ordering part number matches the required surface mount right-angle configuration. Cross-reference the RoHS3 compliance status if environmental regulations apply to the final assembly. Confirm that the 2-position requirement aligns with the circuit design before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for minimal two-wire interfaces. The 2.00mm pitch accommodates standard wire gauges while maintaining a small footprint. Consider the SMT mounting method for automated assembly processes. Evaluate the 3A current rating against the maximum load requirements of the connected circuitry to ensure safe operation.

Headers, Male Pins Part Context

This part belongs to the IMSA-13103B series of wire-to-board connectors. It serves as a male header counterpart to matching receptacles in the same family. The series is designed for positive locking applications requiring robust mechanical retention. It complements other positions in the 13103B lineup for scalable multi-pin designs.

Headers, Male Pins Replacement Considerations

IMSA-13103B-02Y900 is a parameter equivalent alternative from the same manufacturer. Verify that the functional specifications match exactly before substitution. Ensure the physical dimensions and mounting style remain compatible with the existing PCB layout.

Headers, Male Pins FAQ

What is the contact shape of this connector?

The contacts are square-shaped male pins.

Is this connector suitable for high-temperature environments?

Yes, it is rated for operation up to 125°C.
