IMSA-13103B-04Y901

Headers, Male Pins Overview

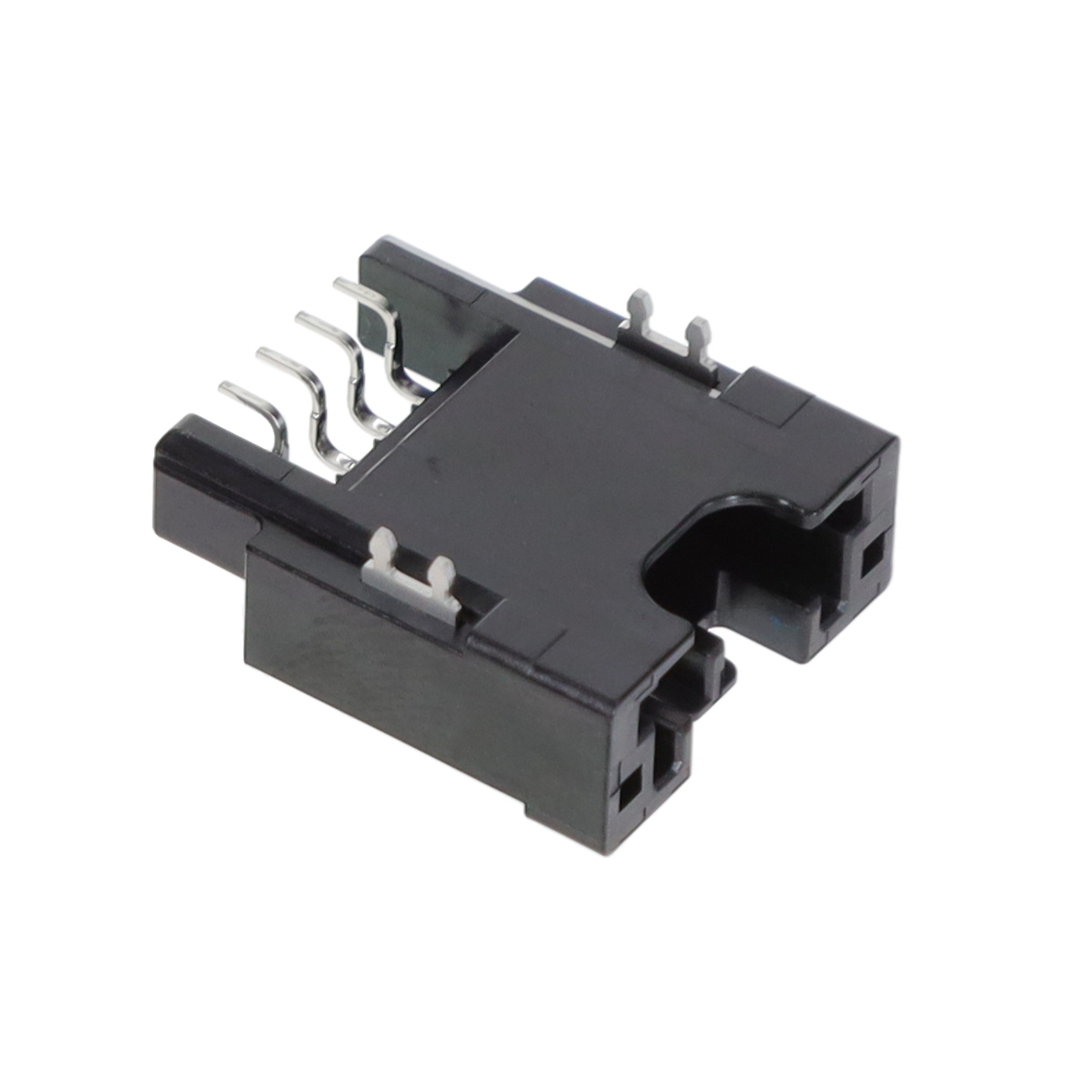

The IMSA-13103B-04Y901 is a surface mount right-angle header connector manufactured by IRISO USA Inc. It features a 2.00mm pitch and four positions in a single row. The component utilizes square male pins with tin plating on copper alloy contacts, providing a rated current of 3A and voltage of 50VAC. Insulation is constructed from black polyphenylene sulfide (PPS), offering an insulation height of 6.50mm. Designed for board-to-cable or wire applications, it includes a four-wall shielded housing and positive locking retention. The unit operates within a temperature range of -40°C to 125°C and supports wave soldering termination.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for automated PCB assembly
• Positive locking retention mechanism ensures secure mating
• Four-wall shielded housing provides environmental protection
• Tin-plated copper alloy contacts ensure reliable conductivity

Headers, Male Pins Applications

• Board-to-cable interconnections
• Board-to-wire connections
• General electronic circuit interfacing

Headers, Male Pins Procurement Notes

Verify the complete part number IMSA-13103B-04Y901 against official IRISO USA Inc. documentation to confirm specific packaging options such as tape and reel or cut tape. Ensure compatibility with RoHS3 standards and MSL level 1 requirements for your manufacturing process. Cross-reference datasheet specifications regarding operating temperature and electrical ratings before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle surface mount header is required for compact designs. The 2.00mm pitch suits applications needing moderate density without excessive board space consumption. Consider the 6.50mm insulation height for adequate clearance and the positive lock feature for vibration resistance. Verify that the 3A current rating meets the specific circuit load requirements.

Headers, Male Pins Part Context

This connector belongs to the 13103B series of wire-to-board connectors from IRISO Electronics Co., Ltd. The series is characterized by its positive locking mechanism and robust construction suitable for various industrial and consumer electronics. The IMSA-13103B-04Y901 variant specifically addresses the need for a four-position right-angle interface with surface mount capabilities.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other 2.00mm pitch SMT headers with similar pin counts and locking features. Verify mechanical dimensions, insulation material properties, and contact plating thickness when evaluating alternative manufacturers. Ensure any replacement maintains the same electrical ratings and thermal performance characteristics.
