IMSA-13103B-08Y900

Headers, Male Pins Overview

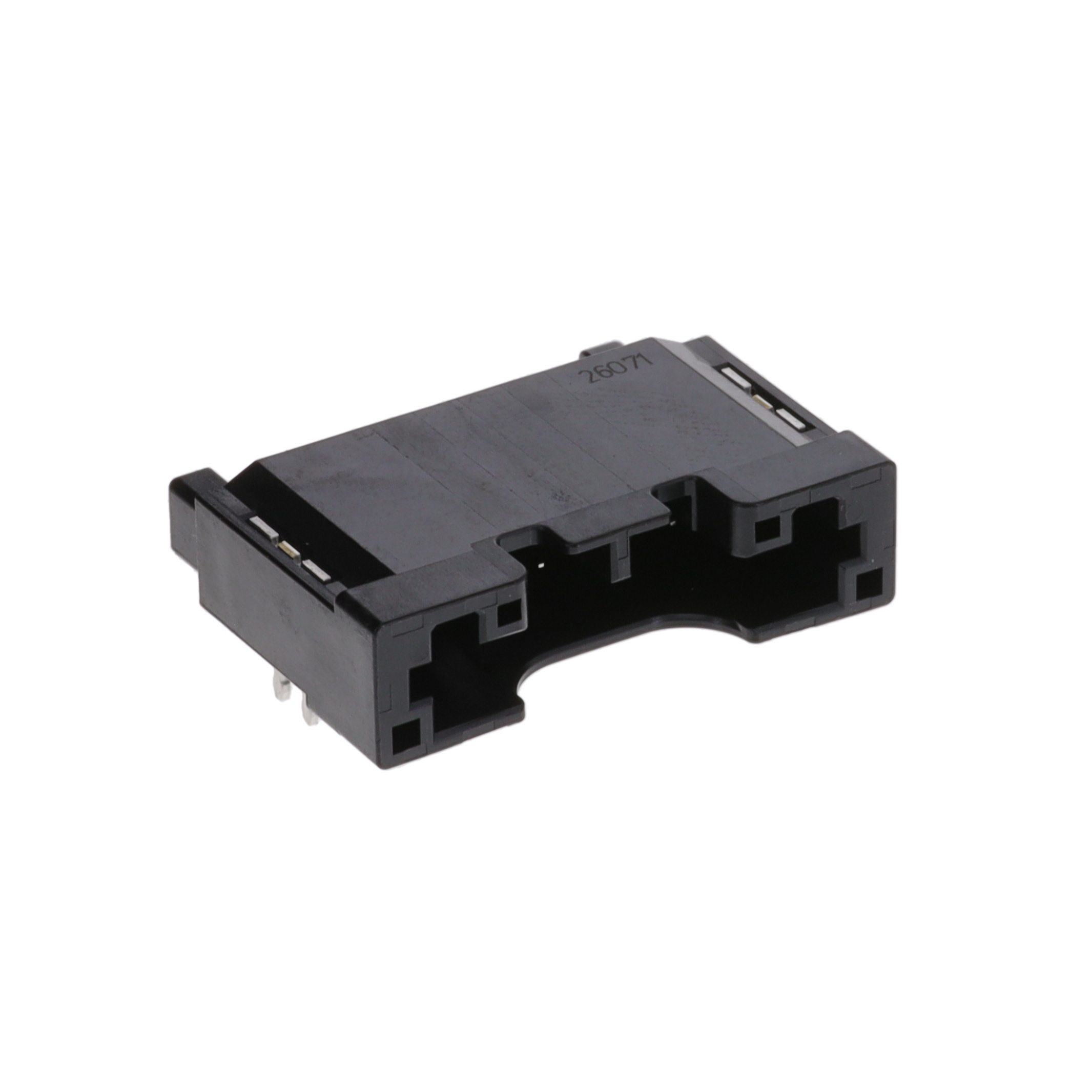

The IMSA-13103B-08Y900 is a surface mount right-angle header manufactured by IRISO USA Inc. It features an 8-position single-row configuration with a 2.00mm pitch. The connector utilizes square male pins with tin plating and PPS insulation, rated for 50VAC and 3A current. Designed for board-to-wire applications, it includes a four-wall shielded housing and positive locking retention. Operating temperatures range from -40°C to 125°C.

Headers, Male Pins Feature Summary

• Positive locking retention mechanism ensures secure mating
• Four-wall shielded housing design for structural integrity
• Surface mount right-angle termination for space-efficient PCB layout
• Tin-plated square contacts for reliable conductivity

Headers, Male Pins Applications

• Board-to-wire interconnections
• PCB assembly requiring right-angle headers
• Electronic devices operating within specified voltage and temperature limits

Headers, Male Pins Procurement Notes

Verify the specific part number IMSA-13103B-08Y900 against official IRISO USA Inc. documentation to confirm compatibility. Ensure that the required packaging format, such as cut tape or reel, matches the production needs. Cross-reference technical specifications including pitch, pin count, and rating with system requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when a right-angle surface mount header with a 2.00mm pitch is required. Consider the 8-position count and single-row layout for circuit density. Verify that the 50VAC and 3A ratings align with the electrical design constraints. Confirm that the SMT process capabilities support the specified termination style.

Headers, Male Pins Part Context

This component belongs to the IMSA-13103B series of wire-to-board connectors from IRISO USA Inc. The series offers various position counts and configurations designed for robust electronic interconnections. The specific model provides a standardized solution for high-density PCB layouts requiring reliable signal transmission.

Headers, Male Pins Replacement Considerations

Consult official IRISO USA Inc. substitution guides for verified alternatives. Generic equivalents may not match the precise locking mechanism or dimensional tolerances required for the application.
