IMSA-13103B-08Y901

$1.11

Description：HEADER SMT RA 8POS KEY-B
Series：13103B
Mfr：IRISO USA Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:945a90764cfa Category: Headers, Male Pins Brand: IRISO USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

IMSA-13103B-08Y901 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists IRISO USA Inc.. Its product description is HEADER SMT RA 8POS KEY-B. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for IMSA-13103B-08Y901

Description：HEADER SMT RA 8POS KEY-B
Series：13103B
Mfr：IRISO USA Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Plug
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：8
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Fastening Type：Latch Holder
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.256" (6.50mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：39.4µin (1.00µm)
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Polyphenylene Sulfide (PPS)
Features：Solder Retention
Operating Temperature：-40°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：50VAC

Headers, Male Pins datasheet and documents for IMSA-13103B-08Y901

IMSA-13103B-08Y901

Headers, Male Pins Overview

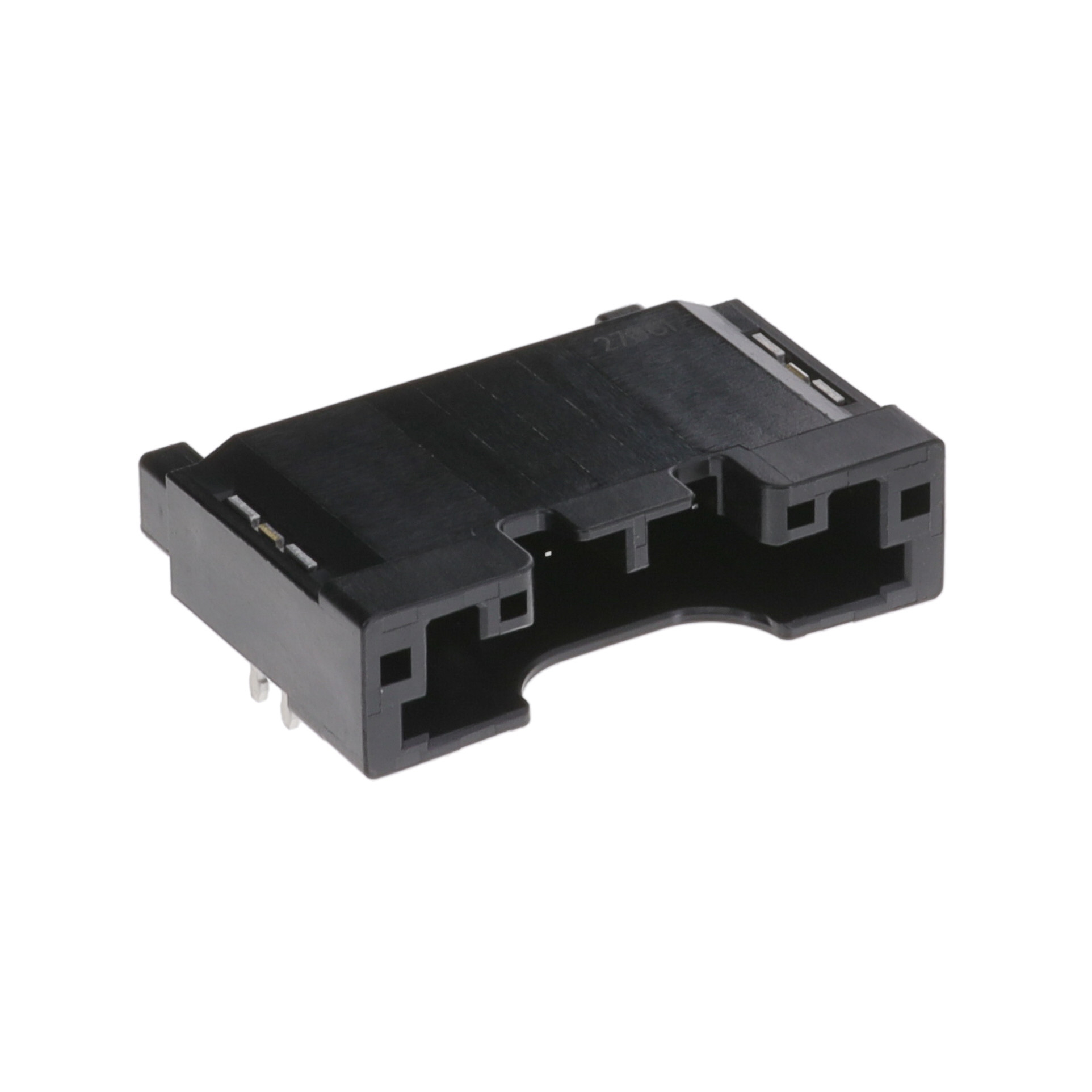

The IMSA-13103B-08Y901 is a surface mount right-angle header connector manufactured by IRISO USA Inc. It features an 8-position single-row configuration with a 2.00mm pitch. The housing is constructed from black polyphenylene sulfide (PPS) and includes a four-wall shielded design. Contact materials are copper alloy with tin plating, rated for 3A current at 50VAC. The component operates within a temperature range of -40°C to 125°C and utilizes positive locking latches.

Headers, Male Pins Feature Summary

Surface mount right-angle termination for PCB integration
Four-wall shielded housing design for EMI protection
Positive locking latch mechanism for secure mating
Fixed solder tail construction for stable mounting

Headers, Male Pins Applications

Board-to-cable interconnections
Wire-to-board connections
General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm pin count and orientation. Ensure compatibility with mating receptacles from the same series. Confirm RoHS3 compliance status during procurement. Check for moisture sensitivity level requirements if storage conditions vary. Validate that the selected variant matches the required shielding and locking specifications.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle board-to-wire connection is required. The 2.00mm pitch suits dense layout applications. The PPS insulation material provides thermal stability. Consider the fixed solder tail feature for automated placement processes. Ensure the mating cable or wire gauge aligns with the contact terminal specifications.

Headers, Male Pins Part Context

This part belongs to the IMSA-13103B series of wire-to-board connectors. The series offers various position counts and packaging options. It is designed for positive locking applications requiring reliable electrical performance in consumer and industrial electronics.
