IMSA-13103B-10Y900

Headers, Male Pins Overview

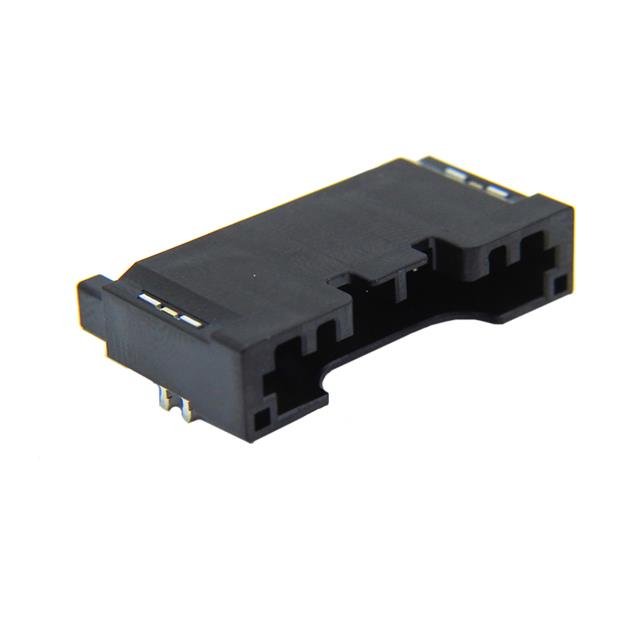

The IMSA-13103B-10Y900 is a surface mount right-angle header manufactured by IRISO USA Inc. It features a 2.00mm pitch and ten positions in a single row. The connector utilizes square copper alloy contacts with tin plating, rated for 3A current and 50VAC voltage. Insulation is provided by black PPS material, offering an insulation height of 6.50mm. Designed for board-to-wire applications, it includes a four-wall shielded latch holder for secure mating. The component operates within a temperature range of -40°C to 125°C and meets RoHS3 standards.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for automated PCB assembly
• Positive locking latch holder mechanism for secure connection
• Four-wall shielded housing for enhanced contact protection
• Fixed solder tail configuration for reliable termination

Headers, Male Pins Applications

• Board-to-wire interconnections
• PCB mounting systems
• Automotive electronics assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number IMSA-13103B-10Y900 against official IRISO documentation to confirm pin count, pitch, and orientation match system requirements. Ensure compatibility with mating connectors from the same series. Check for updated datasheets regarding environmental compliance and operating temperature ranges before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a right-angle surface mount header with positive locking is required. The 2.00mm pitch suits general-purpose board-to-wire connections. Consider the 6.50mm insulation height for vertical clearance constraints. Verify that the 3A current rating aligns with circuit load requirements and that the SMT package matches the target PCB footprint.

Headers, Male Pins Part Context

This part belongs to the 13103B series of wire-to-board connectors from IRISO USA Inc. The series offers various pin counts and orientations, including right-angle surface mount options. These connectors are designed for reliable electrical connections in compact electronic assemblies, featuring robust mechanical latching and standardized spacing for consistent mating performance across different configurations.

Headers, Male Pins Replacement Considerations

Compatible substitutes include IMSA-13103B-10Y901 and other variants within the 13103B series. Verify identical pitch, pin count, and mounting style before substitution. Confirm that alternative parts maintain the same insulation height and shielding characteristics to ensure mechanical fit and electrical continuity.
