IMSA-13103B-10Y901

Headers, Male Pins Overview

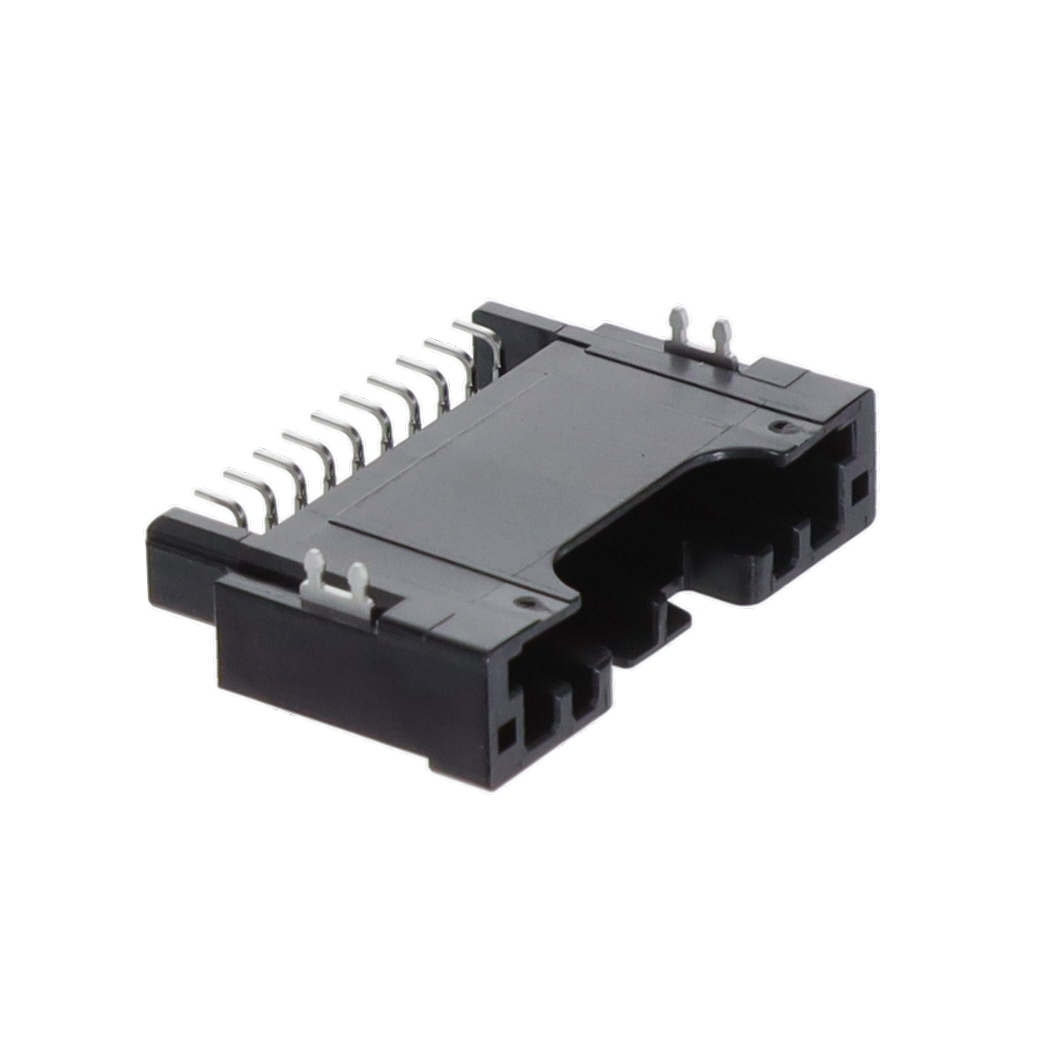

The IMSA-13103B-10Y901 is a surface mount right-angle header manufactured by IRISO USA Inc. It features 10 positions with a 2.00mm pitch and square male pins. The connector utilizes tin-plated copper alloy contacts and PPS insulation, rated for 50VAC and 3A current. Designed for board-to-cable applications, it includes a four-wall shielded housing and latch holder fastening. Operating temperature ranges from -40°C to 125°C.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for compact PCB integration
• Four-wall shielded housing for enhanced signal protection
• Latch holder mechanism ensures secure mating stability

Headers, Male Pins Applications

• Board-to-cable interconnections
• Board-to-wire connections
• General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix Y901 against official IRISO documentation to confirm pin count and orientation. Ensure compatibility with mating receptacles in the 13103 series. Confirm RoHS3 compliance status through manufacturer datasheets prior to final procurement decisions.

Headers, Male Pins Selection Notes

Select this component for applications requiring right-angle surface mounting with positive locking features. The 2.00mm pitch suits dense layouts. Verify that the 3A rating and 50VAC voltage meet system requirements. Consider the fixed solder tail characteristic for permanent PCB attachment.

Headers, Male Pins Part Context

This part belongs to the 13103B series of wire-to-board connectors. It complements matching receptacle housings within the same product family. The series emphasizes positive locking mechanisms and robust construction for reliable industrial and consumer electronics applications.

Headers, Male Pins Replacement Considerations

IMSA-13103B-10Y901TR is listed as an equivalent variant.
