IMSA-13103B-12Y900

Headers, Male Pins Overview

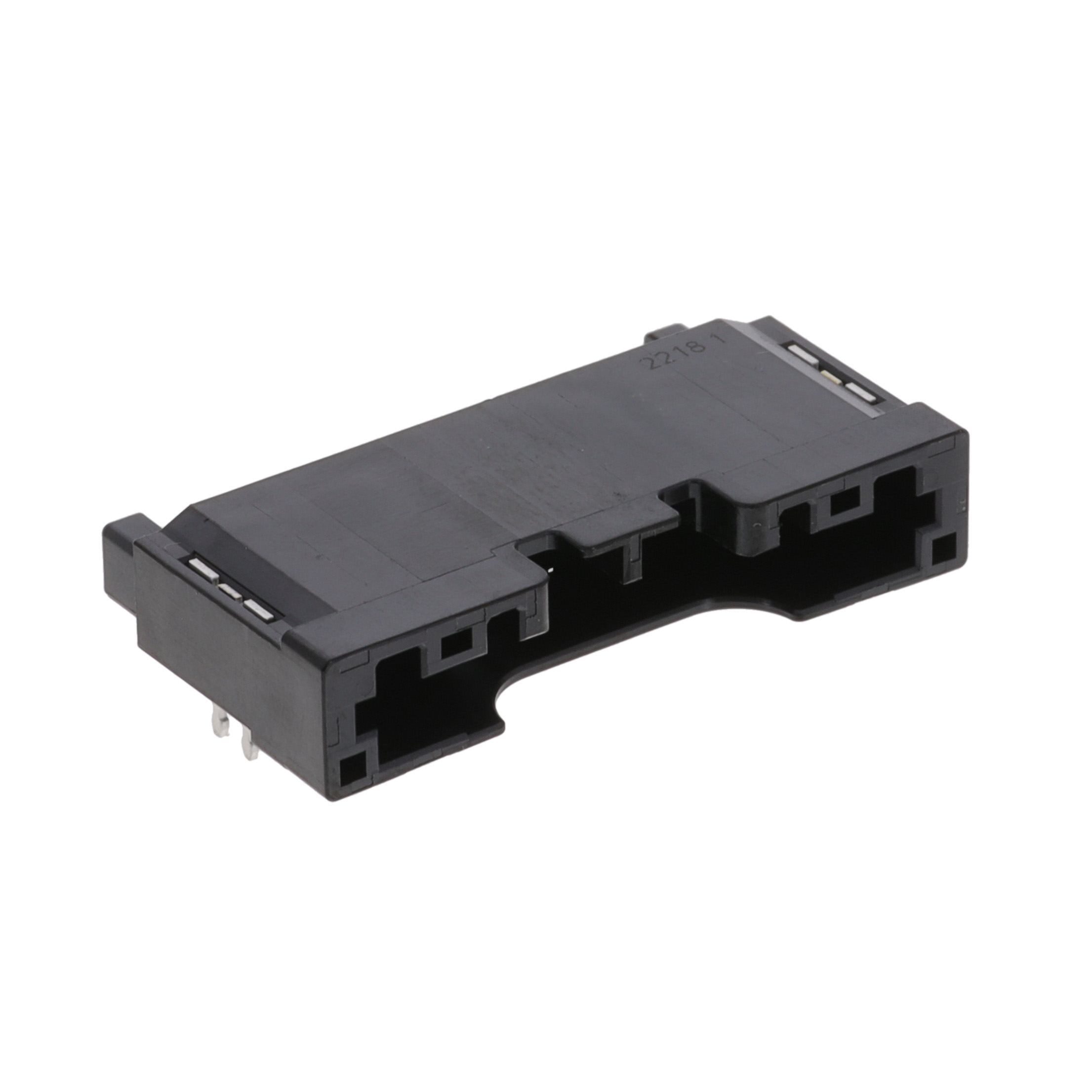

The IMSA-13103B-12Y900 is a surface-mount right-angle header manufactured by IRISO USA Inc. It features a 12-position single-row configuration with a 2.00mm pitch. The connector utilizes square male pins with tin plating and PPS insulation, rated for 50VAC and 3A current. Designed for board-to-cable applications, it includes a four-wall shielded housing and positive locking retention. Operating temperatures range from -40°C to 125°C, ensuring reliability in diverse electronic environments.

Headers, Male Pins Feature Summary

• Surface-mount right-angle design with solder retention
• Positive locking mechanism for secure connection
• Four-wall shielded housing for protection
• Square pin contact shape for stable mating

Headers, Male Pins Applications

• Board-to-cable interconnections
• Wire-to-board assemblies
• PCB mounting applications

Headers, Male Pins Procurement Notes

Verify the specific keying designation (Key-A) matches the mating harness requirements. Confirm RoHS compliance status and moisture sensitivity level (MSL 1) during storage handling. Ensure the surface-mount footprint aligns with the PCB layout specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a right-angle surface-mount header with positive locking is required. The 2.00mm pitch and 12-position count define the spatial constraints. Consider the 50VAC rating and 3A current capacity against circuit demands. Verify compatibility with mating cables and existing PCB silkscreen markings.

Headers, Male Pins Part Context

This part belongs to the IMSA-13103B series of wire-to-board connectors. The series offers various position counts and keying options to accommodate different assembly needs. IRISO Electronics Industries specializes in developing robust interconnect solutions for industrial and consumer electronics markets.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other models within the IMSA-13103B series, such as IMSA-13103B-10Y900 or IMSA-13103B-20Y901, provided the position count and keying match the design requirements.
