IMSA-13103B-16Y900

Headers, Male Pins Overview

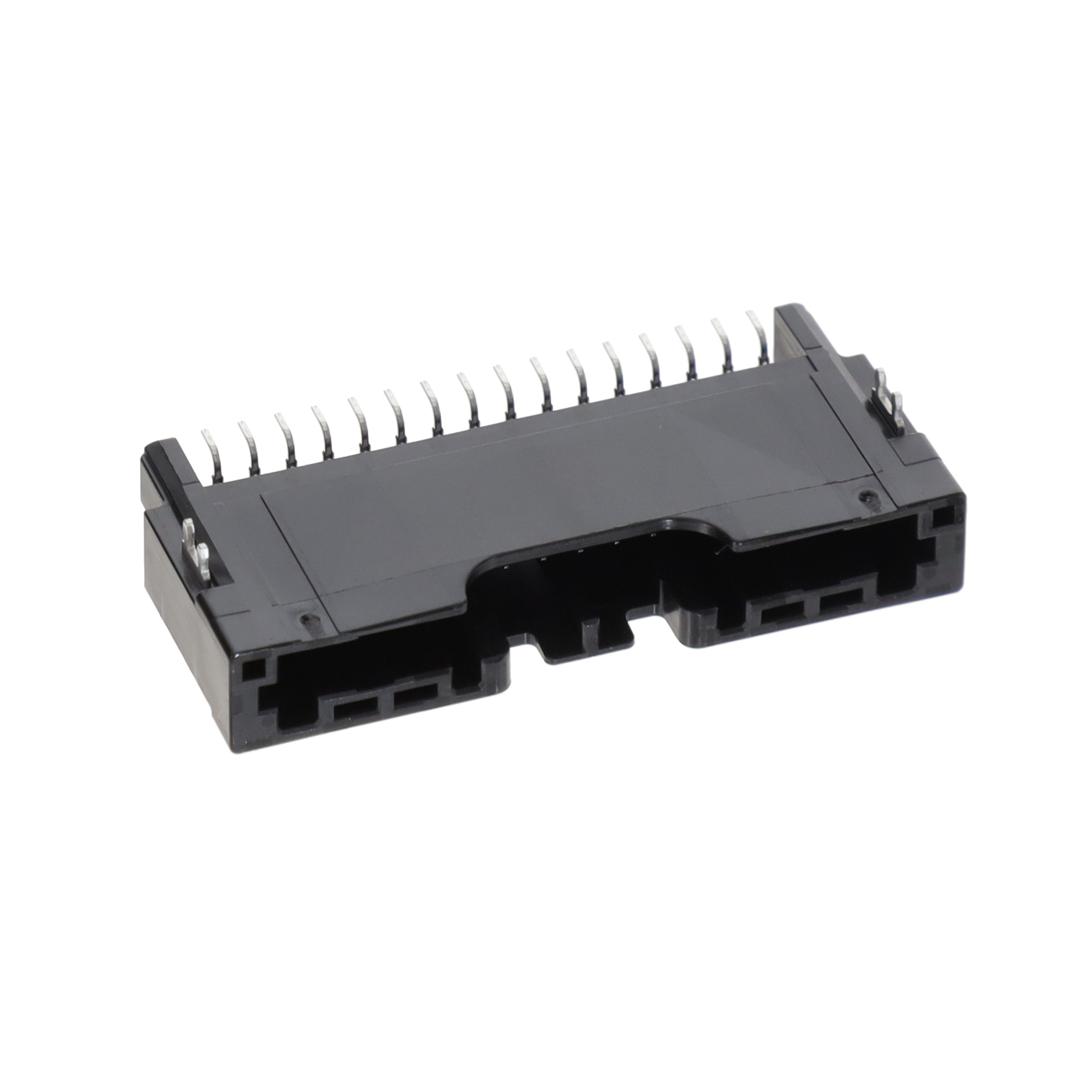

The IMSA-13103B-16Y900 is a surface-mount, right-angle header manufactured by IRISO USA Inc. It features 16 positions with a 2.00mm pitch and utilizes positive locking latches for secure mating. The connector employs square pins made of copper alloy with tin plating, offering a current rating of 3A and voltage rating of 50VAC. Constructed from black PPS insulation, it operates within a temperature range of -40°C to 125°C. The component has an MSL rating of 1 and complies with RoHS3 standards.

Headers, Male Pins Feature Summary

• Right-angle surface mount design for three-dimensional PCB integration
• Positive locking latches ensure secure connection stability
• Four-wall shielding provides electromagnetic interference protection

Headers, Male Pins Applications

• Wire-to-board interconnections in electronic assemblies
• PCB mounting where space efficiency is required
• Industrial control systems requiring reliable signal transmission

Headers, Male Pins Procurement Notes

Verify the specific suffix Y900 against official datasheets to confirm orientation and keying details. Ensure compatibility with mating connectors regarding latch mechanism and pin dimensions. Confirm RoHS3 compliance requirements for your specific application environment before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when right-angle SMT headers are necessary for board-to-cable connections. Consider the 2.00mm pitch and 16-position count for circuit density needs. Evaluate the thermal operating range and voltage ratings against system specifications to ensure long-term reliability under operational stress conditions.

Headers, Male Pins Part Context

This part belongs to the 13103B series of wire-to-board connectors from IRISO USA Inc. The series is characterized by its robust locking mechanisms and standardized 2.00mm spacing. It serves as a critical interface component in various electronic devices requiring durable and stable electrical connections between flexible cables and rigid printed circuit boards.

Headers, Male Pins Replacement Considerations

Check for IMSA-13103B variants with different position counts or keying options if layout adjustments are needed. Verify mechanical footprint compatibility before substituting with other manufacturers' right-angle headers to ensure proper solder joint formation and latch engagement.
