IMSA-13103B-16Y901

Headers, Male Pins Overview

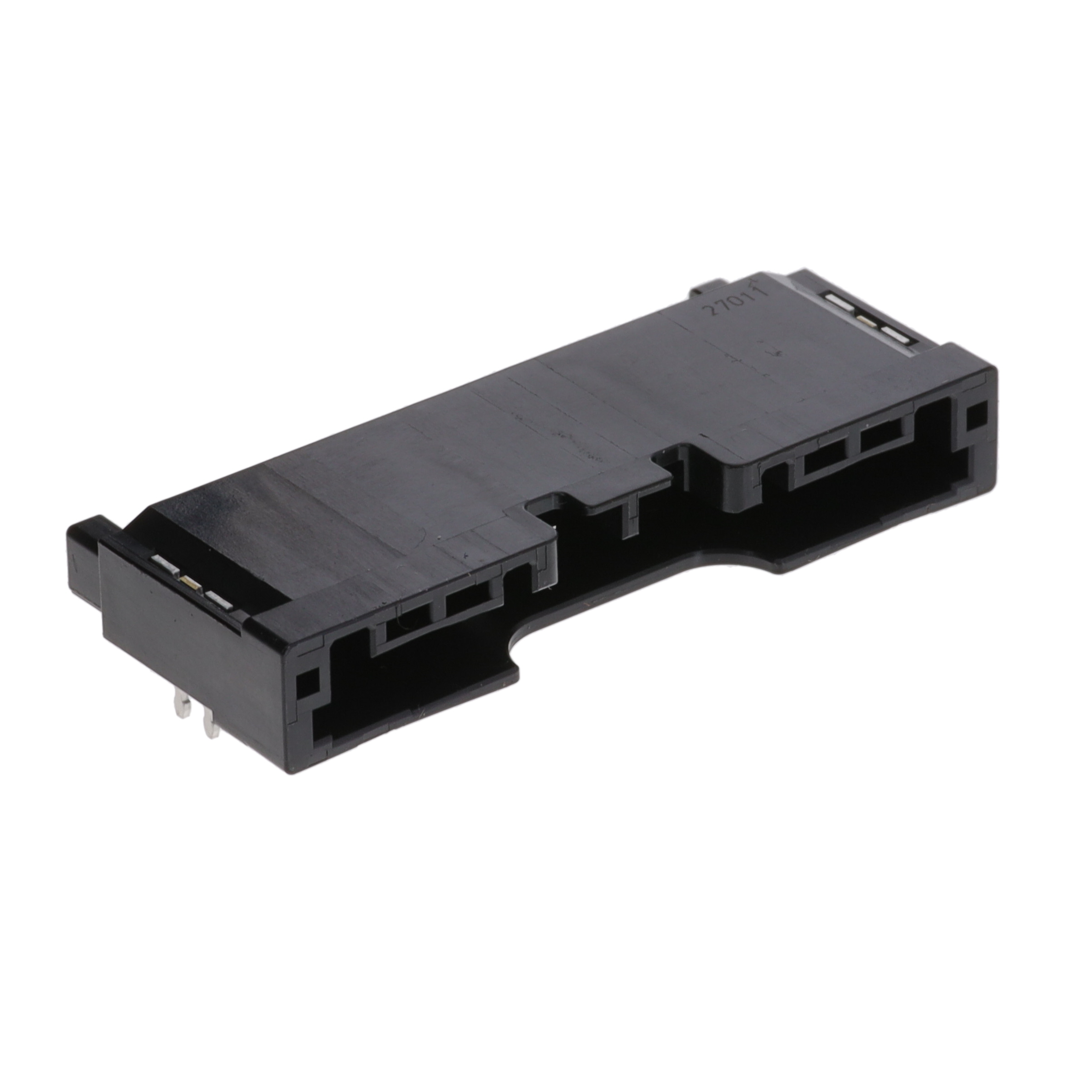

The IMSA-13103B-16Y901 is a surface mount right-angle rectangular connector header manufactured by IRISO USA Inc. It features 16 positions with a 2.00mm pitch and utilizes positive locking mechanisms for secure board-to-cable connections. The component operates within a temperature range of -40°C to 125°C and is rated for 50VAC at 3A. Constructed with PPS insulation and copper alloy contacts, it supports SMT assembly processes.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for compact PCB integration
• Positive locking mechanism ensures secure mating stability
• Square contact shape provides reliable electrical connection
• RoHS3 compliant construction for environmental standards

Headers, Male Pins Applications

• Board-to-cable interconnections
• Board-to-wire assemblies
• General electronic circuit connectivity

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official IRISO documentation to confirm exact packaging and terminal configuration. Ensure compatibility with existing PCB footprint designs before procurement. Cross-reference part numbers with authorized distributors to avoid counterfeit components. Confirm moisture sensitivity level requirements for storage and handling procedures.

Headers, Male Pins Selection Notes

Select this component when a right-angle surface mount header is required for space-constrained applications. The 2.00mm pitch accommodates standard wire gauges for general signal transmission. Verify that the 50VAC rating meets system voltage requirements. Consider the positive locking feature for environments requiring high vibration resistance.

Headers, Male Pins Part Context

This part belongs to the IMSA-13103B series of wire-to-board connectors from IRISO USA Inc. The series is designed for positive locking applications with a focus on reliability in board-to-cable scenarios. The 16-position variant offers a balanced density for multi-signal routing in compact electronic devices.

Headers, Male Pins Replacement Considerations

IMSA-13103B-16Y900 is a parameter-equivalent alternative available from IRISO USA Inc. Both parts share identical electrical and mechanical specifications. Verify pin count and pitch alignment before substitution.
