IMSA-13103B-20Y901

Headers, Male Pins Overview

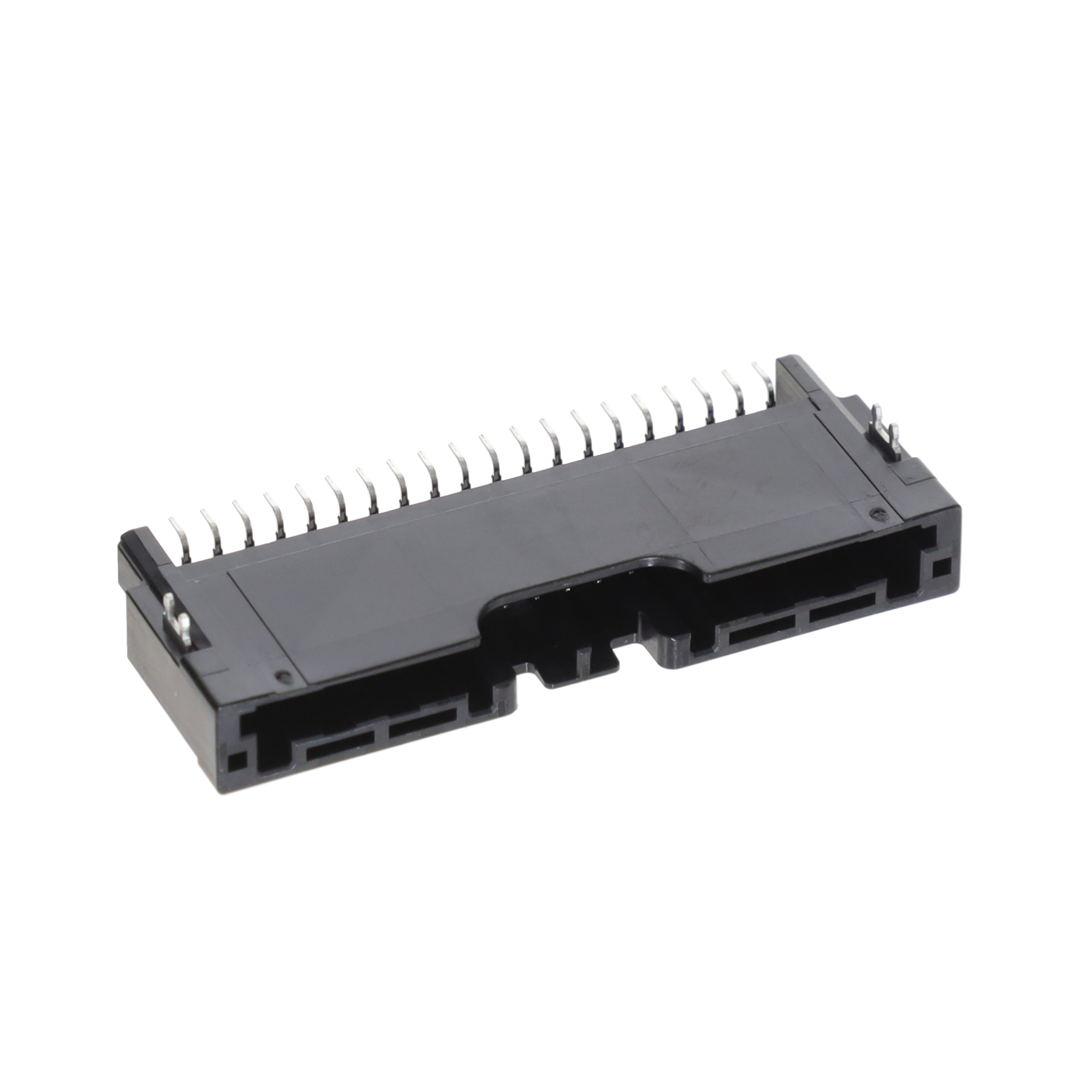

The IMSA-13103B-20Y901 is a surface mount right-angle header manufactured by IRISO USA Inc. It features a 20-position single-row configuration with a 2.00mm pitch. The connector utilizes square male pins with tin plating and PPS insulation, rated for 50VAC and 3A. Designed for board-to-wire applications, it includes a four-wall shielded cover and positive locking retention. The component operates within a temperature range of -40°C to 125°C and is supplied in tape and reel packaging.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for automated PCB assembly
• Positive locking mechanism ensures secure mating stability
• Four-wall shielded cover provides enhanced environmental protection
• Fixed solder tail construction supports reliable electrical connections

Headers, Male Pins Applications

• Board-to-wire interconnections
• PCB mounting systems
• Automotive electronics assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number IMSA-13103B-20Y901 against official manufacturer documentation to confirm pin count, pitch, and termination style. Ensure compatibility with mating wire harnesses and PCB footprint requirements before procurement. Check RoHS compliance status and moisture sensitivity levels as required by project specifications.

Headers, Male Pins Selection Notes

Select this component for applications requiring right-angle surface mount connectivity with positive locking features. The 2.00mm pitch and 20-position layout suit dense circuit designs. Verify that the 50VAC rating and 3A current capacity meet system electrical requirements. Confirm that the operating temperature range aligns with the intended environment.

Headers, Male Pins Part Context

This connector belongs to the 13103B series from IRISO USA Inc., designed for wire-to-board applications. The series offers various position counts and locking mechanisms. This specific model represents a high-density solution with shielding capabilities, suitable for robust electronic assemblies requiring reliable signal transmission.

Headers, Male Pins Replacement Considerations

Consult official cross-reference lists for direct substitutes. Verify that any alternative maintains identical 2.00mm pitch, 20-position count, and right-angle SMT form factor. Ensure mechanical dimensions and locking styles match to preserve assembly integrity.
