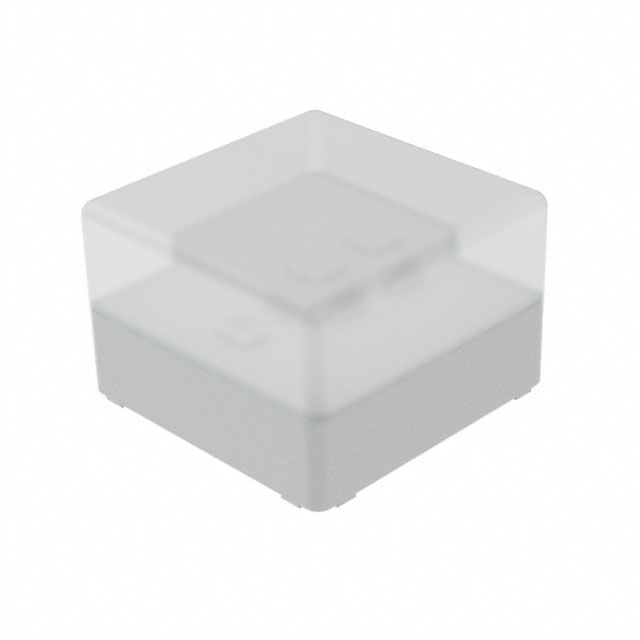

IN-B101FCH is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Inolux. Its product description is LED RGB TOP VIEW SMD. Review the specifications below when checking this part for your BOM.
LED Indication - Discrete specifications for IN-B101FCH
- Description：LED RGB TOP VIEW SMD
- Series：-
- Mfr：Inolux
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red, Green, Blue (RGB)
- Configuration：Common Anode
- Lens Color：-
- Lens Transparency：-
- Millicandela Rating：58mcd Red, 85mcd Green, 17mcd Blue
- Lens Style：Square with Flat Top
- Lens Size：1.00mm
- Voltage - Forward (Vf) (Typ)：2.4V Red, 3.4V Green, 3.4V Blue
- Current - Test：10mA Red, 10mA Green, 10mA Blue
- Viewing Angle：140°
- Mounting Type：Surface Mount
- Wavelength - Dominant：621nm Red, 531nm Green, 470nm Blue
- Wavelength - Peak：629nm Red, 520nm Green, 480nm Blue
- Features：-
- Package / Case：0404 (1010 Metric)
- Supplier Device Package：SMD
- Size / Dimension：1.00mm L x 1.00mm W
- Height (Max)：0.75mm
- Grade：-
- Qualification：-
LED Indication - Discrete datasheet and documents for IN-B101FCH
LED Indication - Discrete Overview
The IN-B101FCH is a surface-mount infrared emitter LED manufactured by Inolux Corporation. This component belongs to the company's infrared communication and emitter product portfolio, designed for applications requiring reliable IR signal transmission. It features an SMD/SMT package suitable for automated assembly processes. The device operates within standard industrial temperature ranges and is RoHS compliant, ensuring environmental safety standards are met for electronic manufacturing.
LED Indication - Discrete Feature Summary
- Surface-mount design for efficient PCB integration
- Optimized for infrared communication applications
- RoHS compliant construction
LED Indication - Discrete Applications
- Infrared remote control systems
- IR data communication links
- Consumer electronics sensing interfaces
LED Indication - Discrete Procurement Notes
Verify the specific datasheet version and electrical characteristics directly with Inolux or authorized distributors before procurement. Confirm that the ordering suffix matches the required packaging and binning specifications. Ensure compatibility with your assembly process parameters and thermal management requirements based on the official component documentation.
LED Indication - Discrete Selection Notes
Select this component when designing circuits requiring discrete infrared emission in a compact surface-mount form factor. Consider the forward current and voltage requirements relative to your driver circuit capabilities. Evaluate the radiation intensity and beam angle specifications against your optical system's distance and alignment constraints to ensure adequate signal coverage.
LED Indication - Discrete Part Context
Inolux Corporation specializes in light-emitting diodes, including visible, ultraviolet, and infrared products. The IN-B101FCH falls under their infrared emitter category, which supports various communication and sensing applications. The company provides these components to support the development of consumer electronics and industrial devices requiring precise optical output.
LED Indication - Discrete Replacement Considerations
No public confirmed substitute part numbers are available in the provided source material. Engineers should consult Inolux technical support or authorized distributors for potential cross-reference options if this specific model becomes unavailable.
