IN-P32ATYG

LED Indication - Discrete Overview

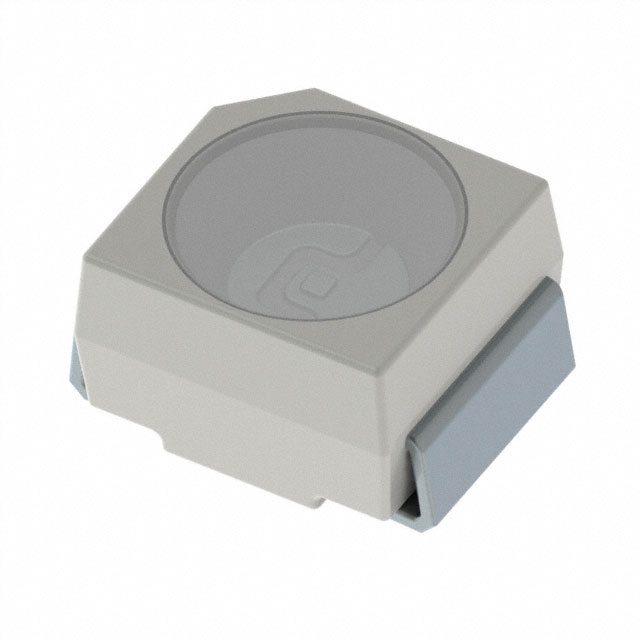

The IN-P32ATYG is a surface-mount LED indicator manufactured by Inolux, housed in a 2-PLCC package with dimensions of 3.50mm length, 2.80mm width, and a maximum height of 1.90mm. It emits yellow-green light at a peak wavelength of 573nm with a typical forward voltage of 2.2V. The component features a clear lens, a viewing angle of 120 degrees, and a luminous intensity of 90mcd when tested at 20mA. It is RoHS compliant and suitable for standard SMD assembly processes.

LED Indication - Discrete Feature Summary

• Emits distinct yellow-green light with high visibility
• Features a wide 120-degree viewing angle for broad signal coverage
• Utilizes a compact 2-PLCC surface mount package for space-efficient PCB integration

LED Indication - Discrete Applications

• Status indication on electronic circuit boards
• Power supply unit front panel indicators
• Consumer appliance control panels

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version to confirm mechanical tolerances and thermal characteristics. Ensure compatibility with standard reflow soldering profiles for PLCC packages. Check for any recent product change notifications regarding material composition or packaging updates before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a compact yellow-green indicator is required for surface-mount applications. Consider the 120-degree viewing angle for visibility requirements and the 2.2V forward voltage for drive circuit design. Verify that the 90mcd intensity meets the ambient lighting conditions of the target application.

LED Indication - Discrete Part Context

This part belongs to the IN-P32AT series of top-view SMD LEDs from Inolux. The series offers various color options including blue, red, green, and yellow-green, all sharing the same 2-PLCC footprint. This allows for consistent PCB layout design across different product variants while providing distinct visual feedback through color selection.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other manufacturers' 3528 PLCC2 yellow-green LEDs with similar electrical parameters. Verify pinout compatibility and spectral output differences before substitution. Generic equivalents may vary in luminous intensity and viewing angle specifications.
