IN-P32DATRG

LED Indication - Discrete Overview

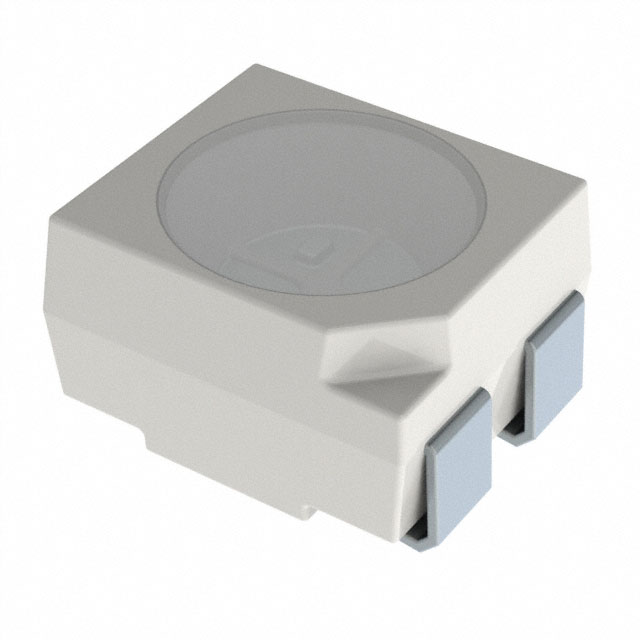

The IN-P32DATRG is a dual-color surface-mount LED from Inolux, housed in a 4-PLCC (3528) package. It emits green light at 522nm and red light at 622nm. The device features a clear lens with a 120-degree viewing angle. Typical forward voltage is 3.2V for the green element and 2.2V for the red element. Both elements are rated for a maximum power dissipation of 90mW each.

LED Indication - Discrete Feature Summary

• Dual-color configuration combining green and red emission within a single compact SMD package
• Clear lens design providing a wide 120-degree viewing angle for enhanced visibility
• Standard PLCC-4 footprint facilitating automated surface-mount assembly processes

LED Indication - Discrete Applications

• Status indication on electronic circuit boards
• Multi-state signaling in consumer appliances
• Visual feedback components in industrial control panels

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized distributors to ensure compliance with RoHS3 standards. Confirm moisture sensitivity level (MSL 5) handling requirements during storage and reflow soldering. Cross-reference datasheet specifications against current production revisions to guarantee electrical parameter consistency for your specific design implementation.

LED Indication - Discrete Selection Notes

Select this component when space-constrained designs require distinct red and green status indicators within a single mounting location. The 3528 package size offers a balance between optical output and board real estate. Ensure thermal management strategies account for the combined heat generation if both colors operate simultaneously at high duty cycles.

LED Indication - Discrete Part Context

This part belongs to Inolux's IN-P32 series of discrete LEDs. The series utilizes standard PLCC packaging formats widely adopted in the electronics manufacturing industry. The IN-P32DATRG specifically addresses applications needing bi-color functionality without increasing the component count or PCB area compared to using separate single-color devices.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other manufacturers' 3528 PLCC-4 dual-color LEDs with matching pinout configurations. Verify that alternative parts maintain identical peak wavelengths (522nm/622nm) and forward voltage tolerances to ensure circuit compatibility and consistent visual performance.
