IN-P36ATEG

LED Indication - Discrete Overview

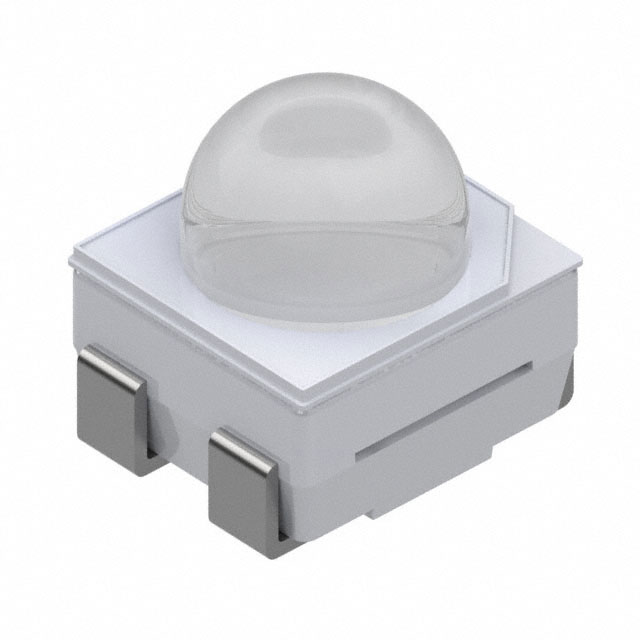

The IN-P36ATEG is a green surface-mount LED from Inolux, housed in a PLCC-4 package with dimensions of 3.6 x 3.1 x 3.5 mm. It features a round, diffused lens and emits light at a dominant wavelength of 523 nm. The component operates with a forward voltage of 3 V at a test current of 30 mA, producing an optical intensity of 8 cd within a 30-degree viewing angle. It supports SMD/SMT installation and functions within a temperature range of -40°C to +100°C.

LED Indication - Discrete Feature Summary

• Compact PLCC-4 surface-mount design for precise placement
• Green emission with 523 nm dominant wavelength
• Diffused round lens for optimized light distribution

LED Indication - Discrete Applications

• Indicator lights for electronic devices
• Status indication in control panels
• Backlighting for small form-factor interfaces

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm color and binning requirements. Ensure compatibility with standard PLCC-4 footprints during PCB layout. Confirm moisture sensitivity handling procedures are followed according to manufacturer guidelines before reflow soldering.

LED Indication - Discrete Selection Notes

Select this component when a compact green indicator is required for space-constrained designs. The 30-degree viewing angle suits applications needing focused visibility. Verify thermal management capabilities align with the specified operating temperature range of -40°C to +100°C for environmental stability.

LED Indication - Discrete Part Context

This part belongs to the IN-P36AT series by Inolux, which includes variants in yellow (IN-P36ATFY) and red (IN-P36ATFR). The series utilizes a standardized 3631 PLCC-4 package with an integrated lens, allowing for consistent mechanical integration across different color options within the same product family.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other PLCC-4 green LEDs with similar electrical characteristics. Verify pinout compatibility and luminous intensity ratings before substitution.
