IN-P55QDTRGBW

LED Indication - Discrete Overview

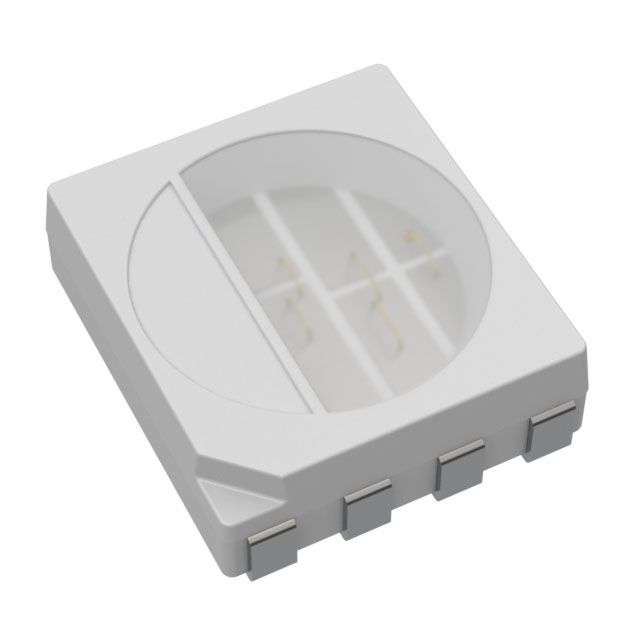

The IN-P55QDTRGBW is a surface-mount RGBW LED indicator by Inolux, housed in an 8-PLCC package with J-leads. It integrates red (624nm), green (525nm), blue (470nm), and white emitters within a clear, circular lens. Typical forward voltages are 2V for red and 3.2V for green, blue, and white channels. Test currents are specified at 20mA for primary colors and 30mA for white. Luminous intensities reach up to 2200mcd for green. The component features a 120-degree viewing angle and measures 5.50mm x 5.00mm x 1.90mm.

LED Indication - Discrete Feature Summary

• Integrates four distinct light-emitting diodes (red, green, blue, and white) into a single compact surface-mount package for multi-color output.
• Features a clear, flat-top circular lens design that provides a wide 120-degree viewing angle for broad visibility.
• Utilizes an 8-SMD J-lead configuration to facilitate standard surface-mount assembly processes.

LED Indication - Discrete Applications

• Status indication in consumer electronics devices
• Multi-color signaling in industrial control panels
• Visual feedback components in home automation systems

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure correct packaging format, such as tape-and-reel or cut tape. Confirm RoHS compliance status and moisture sensitivity level requirements prior to procurement to align with your facility's reflow soldering profile and storage conditions.

LED Indication - Discrete Selection Notes

Select this component when a single-package solution for red, green, blue, and white illumination is required. Ensure the PCB footprint matches the 8-PLCC J-lead dimensions of 5.50mm by 5.00mm. Consider the forward voltage differences between the red channel and the other channels when designing the driving circuitry.

LED Indication - Discrete Part Context

This part belongs to Inolux's discrete LED indicator series, designed for applications requiring compact, high-brightness multi-color signaling. The RGBW configuration allows for precise color mixing and bright white generation without relying on phosphor conversion alone, distinguishing it from standard RGB LEDs.

LED Indication - Discrete Replacement Considerations

No public substitute part numbers are confirmed in the provided documentation. Verify pinout compatibility and thermal characteristics before considering alternative manufacturers.

LED Indication - Discrete FAQ

What is the typical forward voltage for the red channel?

The typical forward voltage for the red channel is 2V.

Does this LED include an integrated driver IC?

No, the IN-P55QDTRGBW is a discrete LED indicator without an integrated controller or driver IC.
