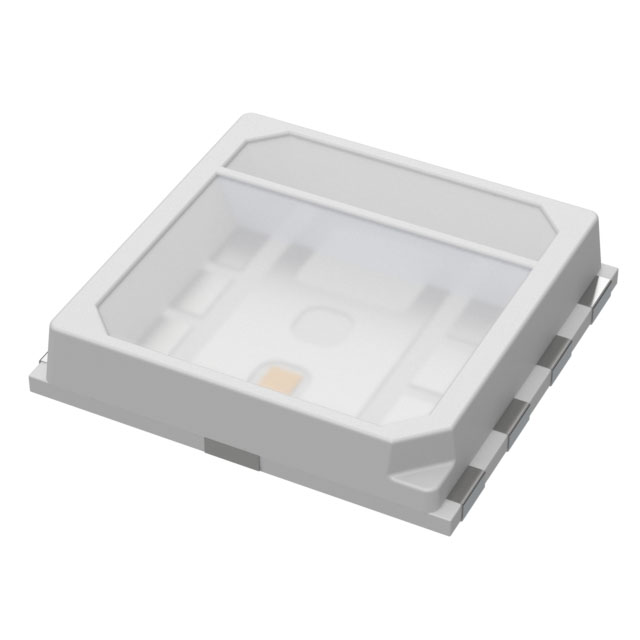

IN-P55QSTGRGBW is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Inolux. Its product description is LED RGBW CLEAR SMD. Review the specifications below when checking this part for your BOM.
LED Indication - Discrete specifications for IN-P55QSTGRGBW
- Description：LED RGBW CLEAR SMD
- Series：-
- Mfr：Inolux
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red, Green, Blue, White (RGBW)
- Configuration：Independent
- Lens Color：-
- Lens Transparency：Clear
- Millicandela Rating：-
- Lens Style：Rectangle with Flat Top
- Lens Size：-
- Voltage - Forward (Vf) (Typ)：2V Red, 3.2V Green, 3.2V Blue, 3.2V White
- Current - Test：100mA Red, 100mA Green, 100mA Blue, 100mA White
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：624nm Red, 525nm Green, 470nm Blue
- Wavelength - Peak：-
- Features：-
- Package / Case：8-SMD, No Lead Exposed Pad
- Supplier Device Package：-
- Size / Dimension：5.40mm L x 5.00mm W
- Height (Max)：1.35mm
- Grade：-
- Qualification：-
LED Indication - Discrete datasheet and documents for IN-P55QSTGRGBW
LED Indication - Discrete Overview
The Inolux IN-P55QSTGRGBW is a surface-mount RGBW LED in an 8-PLCC package. It emits red (624nm), green (525nm), blue (470nm), and white (6500K) light with a 120° viewing angle. Forward voltages are 2V for red and 3.2V for green, blue, and white. Test currents are 100mA for all channels. Luminous flux values are 11lm (red), 25lm (green), 5lm (blue), and 40lm (white). Power ratings are 360mW (red) and 540mW for other colors. Dimensions are 5.5mm x 5.0mm x 1.90mm max.
LED Indication - Discrete Feature Summary
- Integrates four distinct primary color emitters within a single compact surface-mount component to enable full-color mixing capabilities.
- Features a top-mount design with a clear lens optimized for high-intensity illumination across the visible spectrum.
- Supports independent channel control for precise color temperature adjustment and dynamic visual effects.
LED Indication - Discrete Applications
- Architectural accent lighting systems requiring customizable color temperatures
- Smart home ambient lighting fixtures with dynamic color changing features
- Digital display backlights needing high brightness and wide color gamut
LED Indication - Discrete Procurement Notes
Verify the specific suffix against the manufacturer datasheet to confirm exact binning and luminous flux ranges. Ensure compatibility with standard PLCC-8 footprint PCB layouts. Check moisture sensitivity level requirements for reflow soldering processes. Confirm RoHS compliance status for target market regulations. Validate thermal management strategies for sustained operation at specified forward currents.
LED Indication - Discrete Selection Notes
Choose this component when high luminous flux per channel is required compared to standard indicator LEDs. The integrated white channel simplifies color rendering calculations. Consider the 100mA forward current requirement for driver circuit design. Evaluate the 5.5x5.0mm package size against available board space constraints. Compare power dissipation characteristics with alternative RGBW solutions.
LED Indication - Discrete Part Context
This part belongs to Inolux's P55Q series of multi-color surface-mount LEDs. It shares the physical 8-PLCC form factor with other variants but differs in internal chip configuration. The series targets applications demanding high-brightness discrete RGBW output without requiring multiple separate components.
LED Indication - Discrete Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility if considering generic PLCC-8 RGBW alternatives. Thermal resistance characteristics may vary between different manufacturers' implementations of similar packages.
