IN-P55TATRGB

LED Indication - Discrete Overview

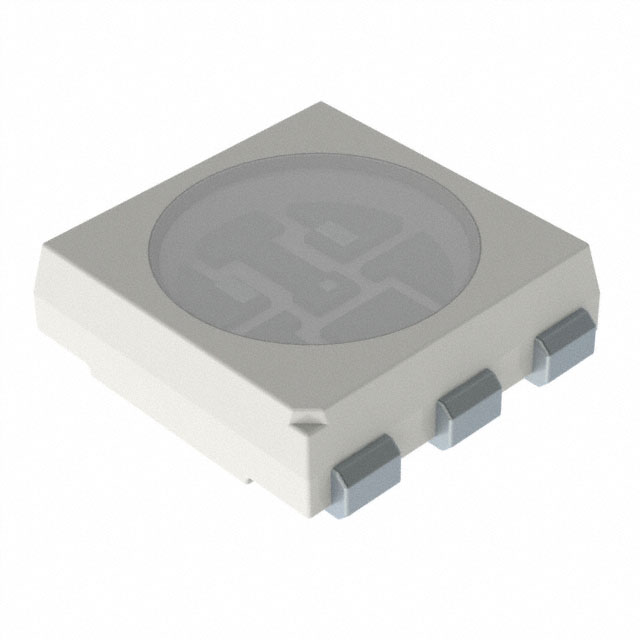

The IN-P55TATRGB is a discrete RGB LED component manufactured by Inolux, designed for surface mount technology applications. It features a clear lens with a circular shape and flat top style, housed in a 6-PLCC package with J-leads. The device integrates red, green, and blue emitters within a single unit, measuring 5.00mm in length and width, with a maximum height of 1.50mm. Electrical characteristics include a typical forward voltage of 2V for the red channel and 3.2V for both green and blue channels. The test current for all three colors is specified at 20mA. Optical performance metrics indicate peak wavelengths of 632nm for red, 625nm for green, and 470nm for blue, with corresponding luminous intensities of 900mcd, 1800mcd, and 600mcd respectively. The component offers a wide viewing angle of 120 degrees.

LED Indication - Discrete Feature Summary

• Integrates red, green, and blue light sources into a single compact surface-mount package
• Features a clear lens with a circular flat-top design for uniform light distribution
• Supports independent control of individual color channels via separate electrical connections
• Complies with RoHS3 standards and REACH regulations for environmental safety

LED Indication - Discrete Applications

• General indicator lighting in consumer electronics devices
• Status indication on circuit boards and control panels
• Decorative lighting elements in small form-factor appliances
• Visual signaling components in portable handheld equipment

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required packaging formats such as tape and reel or cut tape. Confirm that the moisture sensitivity level classification aligns with your facility's reflow soldering profile and storage conditions. Check for any recent product change notices regarding label updates or humidity card requirements before placing orders. Ensure that the supplier documentation matches the manufacturer part number exactly to avoid receiving variants with different optical or electrical specifications.

LED Indication - Discrete Selection Notes

Select this component when a compact RGB solution is needed without integrated driver circuits. Consider the 6-PLCC package size if board space is limited but larger than 0402 dimensions. Evaluate the forward voltage requirements against your power supply rails to ensure proper current limiting resistor selection. Compare the luminous intensity values against ambient lighting conditions to determine if additional amplification or closer placement is necessary for visibility.

LED Indication - Discrete Part Context

This part belongs to the IN-P55 series from Inolux, which focuses on standard discrete LED indicators. Unlike addressable variants like the IN-PI55TATPRPGPB, this model requires external control logic for each color channel. It serves as a foundational component for basic color mixing applications where individual channel control is preferred over serial data interfaces. The series maintains consistent mechanical footprints across similar packages to simplify PCB layout transitions.

LED Indication - Discrete Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
