IN-S121DAS5R5B

LED Indication - Discrete Overview

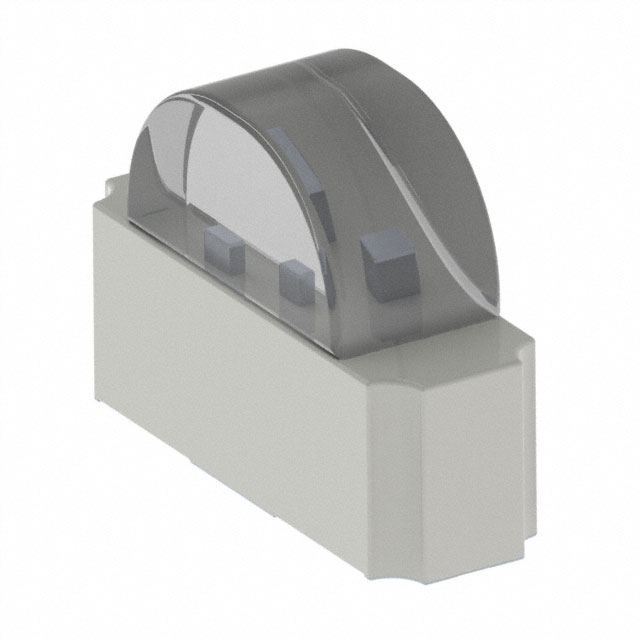

The IN-S121DAS5R5B is a dual-color surface-mount LED from Inolux, featuring blue and red emitters in a common anode configuration. It utilizes a 3-SMD, no-lead package with dimensions of 3.00mm length by 2.10mm width and a maximum height of 1.00mm. The device operates at a forward current of 5mA for both colors, with typical forward voltages of 3V for blue and 2V for red. Peak wavelengths are 470nm for blue and 625nm for red. Light intensity reaches 72mcd for blue and 56mcd for red, supported by a 130-degree viewing angle.

LED Indication - Discrete Feature Summary

• Dual-color emission capability combining blue and red light sources within a single component
• Common anode electrical configuration simplifying circuit design for status indication
• Right-angle surface mount installation suitable for compact PCB layouts

LED Indication - Discrete Applications

• Electronic equipment status indicators
• Control panel signal lights
• Appliance operational feedback displays

LED Indication - Discrete Procurement Notes

Verify the manufacturer part number IN-S121DAS5R5B against official Inolux documentation to confirm specifications. Ensure compatibility with RoHS3 and REACH standards as indicated in environmental classifications. Confirm moisture sensitivity level MSL 3 requirements during storage and handling procedures prior to assembly.

LED Indication - Discrete Selection Notes

Select this component when a compact dual-color indicator is required for space-constrained designs. The right-angle SMD form factor facilitates specific board orientation needs. Verify that the common anode topology aligns with the system's control logic and voltage levels before integration into the final product architecture.

LED Indication - Discrete Part Context

This component belongs to the IN-S121 series of discrete LEDs manufactured by Inolux. The series offers various color combinations and packaging options for general-purpose indication applications. The specific model integrates two distinct semiconductor chips into one standardized surface-mount housing to reduce component count.

LED Indication - Discrete Replacement Considerations

Consult official datasheets for direct substitutes within the IN-S121 family or equivalent dual-color SMD LEDs from other manufacturers. Verify pinout compatibility, dimensional tolerances, and optical characteristics before swapping components in existing designs.
