IN-S121DASRYG

LED Indication - Discrete Overview

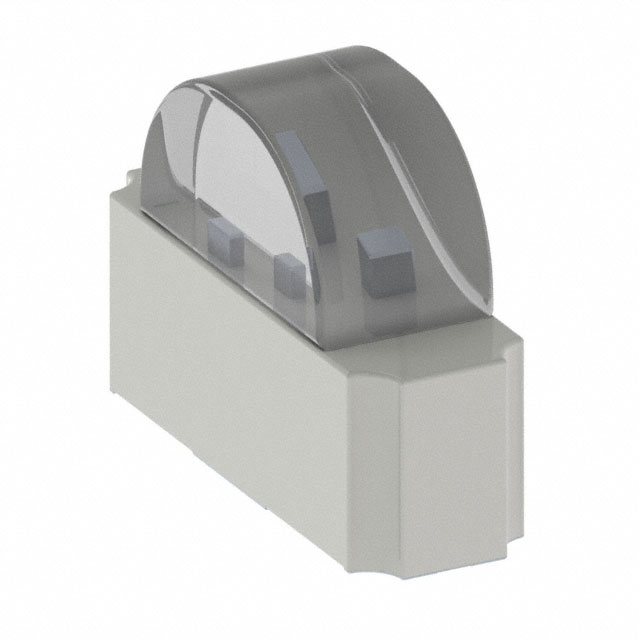

The IN-S121DASRYG is a dual-color surface-mount LED from Inolux, featuring red and yellow-green emission in a 3210 package. It utilizes a common anode configuration with a clear, domed rectangular lens. The device operates at a typical forward voltage of 2.2V for the red diode and 2.6V for the yellow-green diode. Peak wavelengths are specified at 622nm for red and 573nm for yellow-green. Luminous intensity reaches 110mcd for red and 30mcd for yellow-green at a test current of 20mA. The component supports an operating temperature range of -30°C to +85°C.

LED Indication - Discrete Feature Summary

• Dual-color emission combining red and yellow-green light sources within a single compact SMD footprint.
• Common anode electrical configuration simplifies circuit design for bi-color indication applications.
• Clear rectangular lens with a domed top structure provides a wide viewing angle for enhanced visibility.

LED Indication - Discrete Applications

• Status indication on electronic control panels
• Bi-color signaling in industrial automation equipment
• Power state display in consumer electronics devices

LED Indication - Discrete Procurement Notes

Verify the specific package dimensions against PCB layout requirements, as datasheets may list conflicting size specifications. Confirm the forward voltage ratings match the driving circuit capabilities to ensure proper operation. Check moisture sensitivity level handling procedures during assembly to prevent damage. Ensure the common anode polarity aligns with the schematic design before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a compact dual-color indicator is required for space-constrained designs. The common anode setup reduces pin count compared to independent cathode configurations. Consider the luminous intensity requirements, noting the lower output of the yellow-green element. Verify thermal management needs given the specified operating temperature range for the intended environment.

LED Indication - Discrete Part Context

This part belongs to the IN-S121 series of SMD LEDs manufactured by Inolux Corporation. The series includes various color combinations and package styles, such as the 1208 and 3210 formats. The IN-S121DASRYG specifically addresses the need for red and yellow-green illumination in a standard surface-mount form factor suitable for automated assembly processes.

LED Indication - Discrete FAQ

What is the peak wavelength for the yellow-green LED section?

The peak wavelength for the yellow-green emission is 573nm.

Does this LED use a common cathode or common anode configuration?

The IN-S121DASRYG uses a common anode configuration.
