IN-S124BRR

LED Indication - Discrete Overview

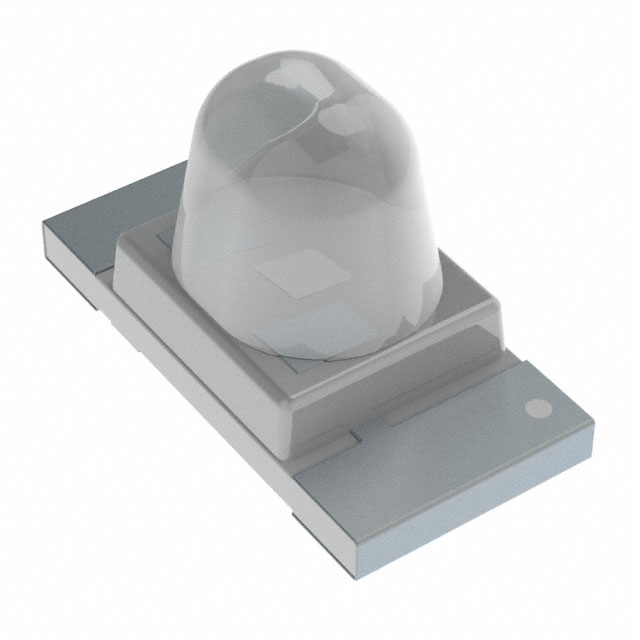

The IN-S124BRR is a red light-emitting diode from the IN-S124BR series, manufactured by Inolux. It features a standard configuration with a clear lens and emits at a peak wavelength of 630nm. The component operates with a typical forward voltage of 2V at a test current of 20mA. It utilizes a 1204 (3216 metric) surface-mount package with bottom entry mounting. Physical dimensions include a length of 3.20mm, width of 1.60mm, and maximum height of 1.85mm. The device exhibits a viewing angle of 20 degrees and has a luminous intensity of 1400mcd.

LED Indication - Discrete Feature Summary

• Surface mount design with bottom entry for PCB integration
• Standard configuration with clear dome lens
• Red emission optimized for indicator applications

LED Indication - Discrete Applications

• Panel status indicators
• Equipment signal lights
• Consumer electronics status displays

LED Indication - Discrete Procurement Notes

Verify the specific datasheet revision and binning information prior to ordering, as manufacturing lot variations may exist. Confirm moisture sensitivity level compliance with assembly timelines. Ensure the selected packaging option matches production requirements. Cross-reference the manufacturer part number with authorized distributor listings to confirm active status and availability constraints.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a compact red indicator with a narrow viewing angle. The 1204 footprint suits space-constrained designs. Consider the 2V forward voltage drop when designing drive circuits. Verify thermal management requirements based on the specified test current. Compare against other colors in the IN-S124BR series if different visual signaling is needed.

LED Indication - Discrete Part Context

The IN-S124BRR belongs to the IN-S124BR family of single-color SMD LEDs. This series offers various color options including green, yellow, and blue variants sharing identical mechanical dimensions and mounting characteristics. The components are designed for automated pick-and-place assembly processes common in modern electronics manufacturing.

LED Indication - Discrete Replacement Considerations

Other colors within the IN-S124BR series, such as IN-S124BRG or IN-S124BRY, serve as direct mechanical substitutes. Verify electrical parameters like forward voltage and peak wavelength differ between colors. Ensure the replacement maintains the required luminous intensity and viewing angle specifications.
