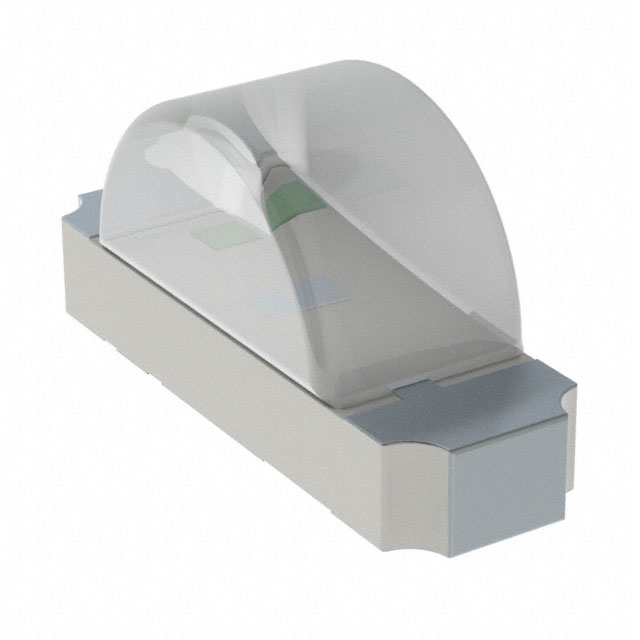

IN-S126ASYG is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Inolux. Its product description is LED YLW-GRN CLEAR 1206 SMD R/A. Review the specifications below when checking this part for your BOM.
LED Indication - Discrete specifications for IN-S126ASYG
- Description：LED YLW-GRN CLEAR 1206 SMD R/A
- Series：IN-S126AS
- Mfr：Inolux
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Yellow-Green
- Configuration：Standard
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：56mcd
- Lens Style：Rectangle with Domed Top
- Lens Size：2.00mm x 1.00mm
- Voltage - Forward (Vf) (Typ)：2.2V
- Current - Test：20mA
- Viewing Angle：120°
- Mounting Type：Surface Mount, Right Angle
- Wavelength - Dominant：572nm
- Wavelength - Peak：576nm
- Features：-
- Package / Case：2-SMD, No Lead
- Supplier Device Package：1206
- Size / Dimension：3.20mm L x 1.50mm W
- Height (Max)：1.00mm
- Grade：-
- Qualification：-
LED Indication - Discrete datasheet and documents for IN-S126ASYG
LED Indication - Discrete Overview
The IN-S126ASYG is a yellow-green surface-mount LED from the IN-S126AS series, manufactured by Inolux. It features a 1206 package with dimensions of 3.20mm length, 1.50mm width, and a maximum height of 1.00mm. The component emits light at a peak wavelength of 572nm with a typical forward voltage of 2.2V. It offers an intensity of 56mcd when tested at 20mA. The lens is clear and colorless, designed for right-angle surface mount installation.
LED Indication - Discrete Feature Summary
- Right-angle surface mount configuration for PCB integration
- Clear rectangular lens with dome style for optical clarity
- Yellow-green emission optimized for visibility
LED Indication - Discrete Applications
- Device status indication
- Panel indicator lights
- Electronic equipment signaling
LED Indication - Discrete Procurement Notes
Verify RoHS3 compliance and MSL level 3 handling requirements during procurement. Confirm that the ordering suffix matches the specific color and packaging needs. Ensure storage conditions adhere to humidity sensitivity guidelines to maintain component integrity before soldering.
LED Indication - Discrete Selection Notes
Select this component for applications requiring a compact 1206 form factor with right-angle mounting capabilities. Consider the 120-degree viewing angle and 56mcd intensity for visibility requirements. Verify compatibility with standard SMT reflow processes given the lead-free construction.
LED Indication - Discrete Part Context
This part belongs to the IN-S126AS series, which provides various discrete LED options in a standardized 1206 package. The series includes multiple colors and configurations to support diverse design needs while maintaining consistent physical dimensions and mounting characteristics across the product line.
LED Indication - Discrete Replacement Considerations
Direct substitutes within the same series include IN-S126ASA (Amber) or IN-S126ASR (Red) if color variation is acceptable. Cross-model replacements require verification of pinout, forward voltage, and mechanical footprint compatibility.
