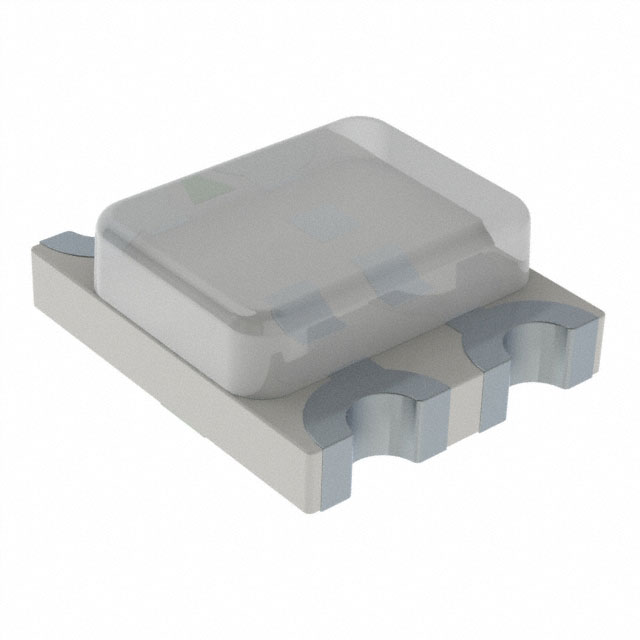

IN-S128TATRGB is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Inolux. Its product description is LED RGB CLEAR 1210 SMD. Review the specifications below when checking this part for your BOM.
LED Indication - Discrete specifications for IN-S128TATRGB
- Description：LED RGB CLEAR 1210 SMD
- Series：IN-S128TATRGB
- Mfr：Inolux
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red, Green, Blue (RGB)
- Configuration：Common Anode
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：200mcd Red, 600mcd Green, 180mcd Blue
- Lens Style：Rectangle with Flat Top
- Lens Size：2.70mm x 2.00mm
- Voltage - Forward (Vf) (Typ)：2.2V Red, 3.2V Green, 3.2V Blue
- Current - Test：20mA Red, 20mA Green, 20mA Blue
- Viewing Angle：130°
- Mounting Type：Surface Mount
- Wavelength - Dominant：625nm Red, 520nm Green, 465nm Blue
- Wavelength - Peak：636nm Red, 521nm Green, 464nm Blue
- Features：-
- Package / Case：1210 (3225 Metric)
- Supplier Device Package：1210
- Size / Dimension：3.20mm L x 2.70mm W
- Height (Max)：1.10mm
- Grade：-
- Qualification：-
LED Indication - Discrete datasheet and documents for IN-S128TATRGB
LED Indication - Discrete Overview
The IN-S128TATRGB is a surface-mount RGB LED component manufactured by Inolux Corporation. It utilizes a 1210 package configuration with physical dimensions of 3.2x2.7x1.1mm. The device operates at a forward voltage range of 2.2V to 2.6V for one color channel and 3.2V to 3.6V for the others, supporting a maximum current of 20mA. It features a wide viewing angle of 130 degrees and complies with RoHS standards.
LED Indication - Discrete Feature Summary
- Multi-color RGB light emission capability within a single compact surface-mount package
- Wide viewing angle design for enhanced visibility from various perspectives
- RoHS compliant construction ensuring environmental safety standards
LED Indication - Discrete Applications
- Status indication in consumer electronic devices
- Backlighting solutions for portable electronics
- Visual signaling components in industrial control panels
LED Indication - Discrete Procurement Notes
Verify the specific datasheet version provided by Inolux Corporation or authorized distributors to confirm exact electrical characteristics and mechanical tolerances. Ensure that the ordering suffix matches the required binning specifications for color consistency and forward voltage ranges before finalizing procurement orders.
LED Indication - Discrete Selection Notes
Select this component when a compact RGB solution is required for space-constrained designs. Consider the 1210 footprint compatibility with existing PCB layouts. Evaluate the forward voltage requirements against the system power supply rails to ensure proper driver circuit integration and thermal management strategies.
LED Indication - Discrete Part Context
This part belongs to Inolux's SMD LED portfolio, specifically designed for applications requiring multi-color output in small form factors. The 1210 package size offers a balance between light output intensity and board space efficiency compared to smaller or larger LED packages available in the manufacturer's lineup.
LED Indication - Discrete Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching the 1210 package dimensions, RGB color spectrum, and electrical parameters such as forward voltage and current ratings.
