IN-S63ASR

LED Indication - Discrete Overview

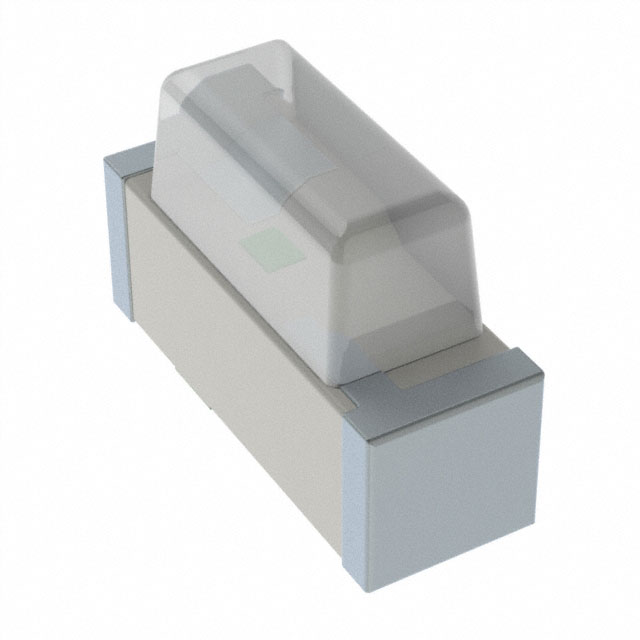

The IN-S63ASR is a discrete surface-mount LED from Inolux, featuring a red emission with a peak wavelength of 622nm. It utilizes a 0603 package size measuring 1.70mm in length and 1.10mm in width, with a maximum height of 0.60mm. The component operates at a forward voltage of 2.2V and emits light at an intensity of 20mcd. It is designed for side-view application on PCBs.

LED Indication - Discrete Feature Summary

• Side-view light emission configuration
• Ultra-low profile 0.60mm height design
• Standard 0603 surface-mount footprint

LED Indication - Discrete Applications

• PCB indicator lighting
• Electronic device status signaling
• Compact consumer electronics displays

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version (IN-S63AS5A) referenced by distributors to ensure compatibility with your design requirements. Confirm that the side-view orientation matches your mechanical constraints. Check for any recent product change notifications regarding the 0603 package specifications before finalizing procurement.

LED Indication - Discrete Selection Notes

Select this component when a low-profile, side-emitting red LED is required for space-constrained designs. Ensure the 2.2V forward voltage aligns with your circuit's power supply capabilities. Consider the 20mcd intensity for visibility needs in your specific application environment.

LED Indication - Discrete Part Context

This part belongs to the IN-S63 series, which includes various color options and viewing angles. The 'AS' suffix typically denotes the amber or red side-view variant within the Inolux portfolio. It is distinct from top-view models like the IN-S63AT series.

LED Indication - Discrete Replacement Considerations

Direct substitutes are not explicitly listed in public documentation. For replacement, consider other IN-S63 series variants with matching dimensions and electrical characteristics, ensuring the side-view emission angle remains compatible.
