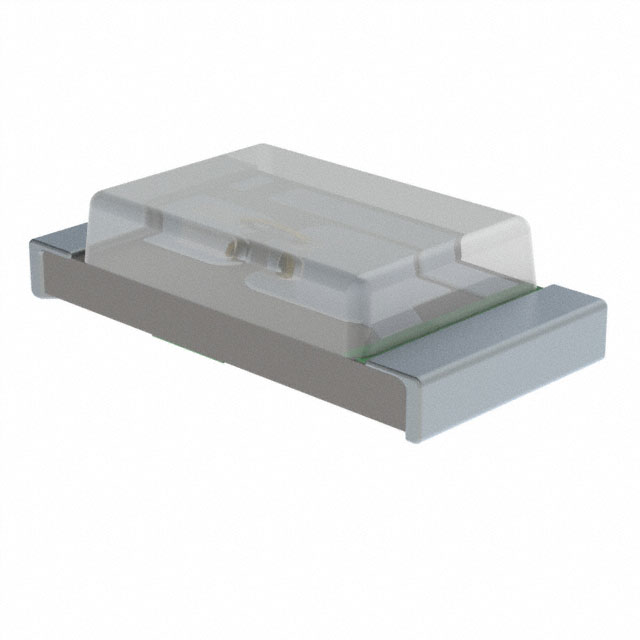

IN-S63AT5Y is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Inolux. Its product description is LED YELLOW CLEAR 0603 SMD. Review the specifications below when checking this part for your BOM.
LED Indication - Discrete specifications for IN-S63AT5Y
- Description：LED YELLOW CLEAR 0603 SMD
- Series：IN-S63AT
- Mfr：Inolux
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Yellow
- Configuration：Standard
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：35mcd
- Lens Style：Rectangle with Flat Top
- Lens Size：1.15mm x 0.80mm
- Voltage - Forward (Vf) (Typ)：2V
- Current - Test：5mA
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：589nm
- Wavelength - Peak：593nm
- Features：-
- Package / Case：0603 (1608 Metric)
- Supplier Device Package：603
- Size / Dimension：1.60mm L x 0.80mm W
- Height (Max)：0.40mm
- Grade：-
- Qualification：-
LED Indication - Discrete datasheet and documents for IN-S63AT5Y
LED Indication - Discrete Overview
The Inolux IN-S63AT5Y is a top-view surface-mount LED in the 0603 package, measuring 1.6mm x 0.8mm x 0.4mm. It emits yellow light with a typical forward voltage of 2V at a test current of 5mA. The component features a rectangular lens with a flat top and offers a luminous intensity of 35mcd. It has a viewing angle of 120 degrees and a power rating of 75mW.
LED Indication - Discrete Feature Summary
- Utilizes AllnGaP/InGaN technology for high reliability
- Supports 800kbps data transfer frequency
- Features specific shaping transmit technology
LED Indication - Discrete Applications
- Status indication in electronic devices
- Low-profile circuit board signaling
- Consumer electronics status indicators
LED Indication - Discrete Procurement Notes
Verify the exact part number against official Inolux documentation to ensure compatibility with required forward voltage and luminous intensity specifications. Confirm that the 0603 footprint matches the PCB design constraints. Check datasheet revisions for any updates to thermal or electrical characteristics before finalizing procurement.
LED Indication - Discrete Selection Notes
Select this component when a low-profile yellow SMD LED is required for space-constrained designs. Consider the 120-degree viewing angle and 35mcd brightness for visibility needs. Ensure the 2V forward voltage aligns with the driving circuit capabilities and that the 0603 package fits the available board real estate.
LED Indication - Discrete Part Context
This component belongs to the IN-S63AT series of top-view SMD LEDs manufactured by Inolux. The series is designed for applications requiring compact dimensions and reliable performance. The IN-S63AT5Y specifically denotes the yellow color variant within this standardized package family.
LED Indication - Discrete Replacement Considerations
Consult official Inolux documentation for verified substitute part numbers within the IN-S63 series. Cross-reference electrical parameters such as forward voltage and luminous intensity to ensure functional equivalence before substituting.
