IN-S63BT5UW

LED Indication - Discrete Overview

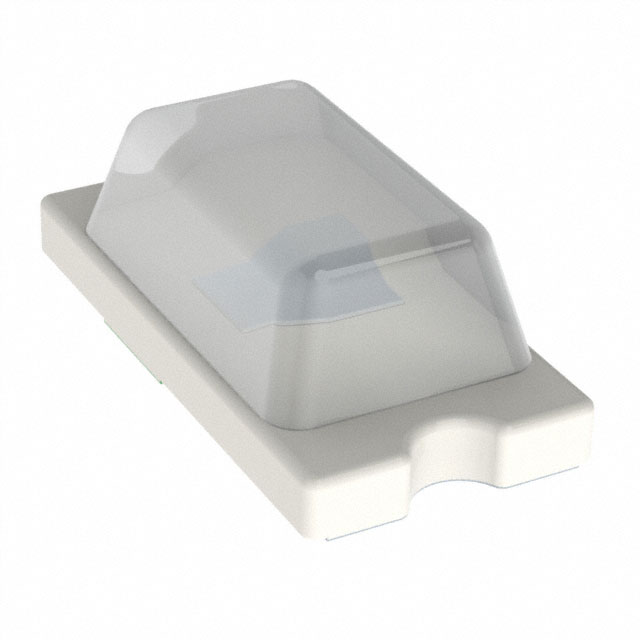

The IN-S63BT5UW is a white light-emitting diode from the IN-S63BT series, manufactured by Inolux. It features a standard configuration with a clear lens and is housed in a 0603 (1608 metric) surface-mount package measuring 1.60mm in length, 0.80mm in width, and a maximum height of 0.60mm. The component operates with a typical forward voltage of 3V at a test current of 5mA. It provides an optical intensity of 450mcd with a viewing angle of 120 degrees. The device complies with RoHS3 standards and has a moisture sensitivity level of MSL 3.

LED Indication - Discrete Feature Summary

• Surface-mount design in a compact 0603 package for space-constrained PCB layouts
• High brightness output of 450mcd with a wide 120-degree viewing angle
• Clear lens construction for efficient light transmission
• RoHS3 compliant manufacturing process

LED Indication - Discrete Applications

• Status indication in consumer electronics
• Backlighting for small displays or keypads
• Indicator lights in portable devices
• General-purpose signaling in embedded systems

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official datasheets to confirm electrical characteristics, as variations may exist within the product family. Ensure compatibility with automated pick-and-place equipment due to the 0603 form factor. Confirm RoHS3 compliance requirements match your assembly standards. Check moisture sensitivity handling procedures if storage conditions exceed specified limits prior to soldering.

LED Indication - Discrete Selection Notes

Select this component when a high-intensity white indicator is required in a minimal footprint. The 3V forward voltage suits low-voltage logic interfaces. Compare luminous intensity against alternatives if higher brightness is needed. Consider the 120-degree beam spread for visibility requirements. Verify thermal management needs based on the intended duty cycle and ambient temperature conditions.

LED Indication - Discrete Part Context

This part belongs to the IN-S63BT series, which represents Inolux's standard discrete LED offerings. The series focuses on providing reliable illumination solutions in compact packages suitable for modern electronic manufacturing. The IN-S63BT5UW specifically denotes the white color variant with clear lens packaging within this lineup.

LED Indication - Discrete Replacement Considerations

Cross-reference with other 0603 white LEDs from Inolux or competitors ensuring identical pinout and mechanical dimensions. Verify that substitute components meet the same 3V forward voltage and 450mcd intensity specifications. Confirm package height constraints are satisfied by potential replacements.
