IN-S63TBS5R5G5B

LED Indication - Discrete Overview

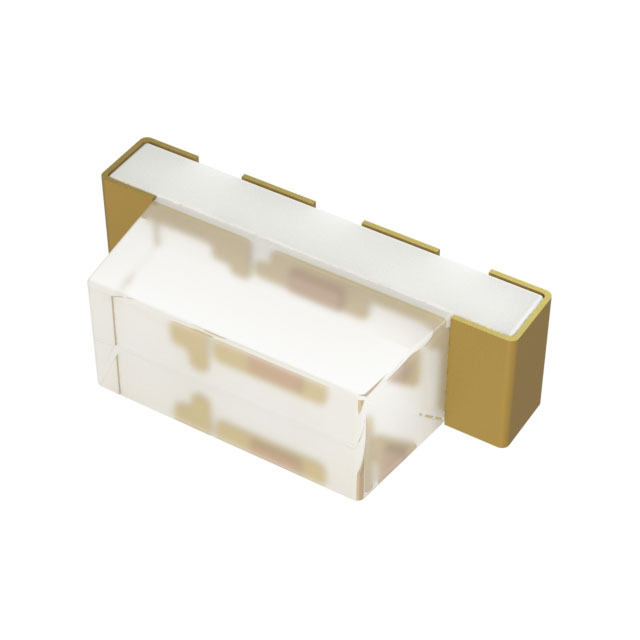

The Inolux IN-S63TBS5R5G5B is a surface-mount RGB LED with right-angle orientation. It integrates a constant current IC with Red, Green, and Blue chips in a 0603 package (1.60mm x 0.80mm). Forward voltages are 1.9V for Red and 2.8V for Green/Blue. Luminous intensities are 30mcd (Red), 230mcd (Green), and unspecified for Blue. Viewing angle is 120 degrees. Forward current is 5mA. Power ratings are 65mW (Red) and 90mW (Green/Blue).

LED Indication - Discrete Feature Summary

• Integrated high-quality constant current IC for stable operation.
• Right-angle side-view design for compact PCB layouts.
• RGB color combination in a standard 0603 SMD footprint.

LED Indication - Discrete Applications

• Status indication in portable electronics.
• Backlighting for small device interfaces.
• Decorative lighting in consumer gadgets.

LED Indication - Discrete Procurement Notes

Verify the specific datasheet revision and electrical tolerances against the manufacturer's official documentation before integration. Confirm that the right-angle mounting orientation aligns with the mechanical constraints of the target PCB assembly. Ensure thermal management strategies account for the specified power ratings to maintain reliability under continuous operation conditions.

LED Indication - Discrete Selection Notes

Select this component when space-constrained designs require integrated drive circuitry within an RGB LED package. The right-angle configuration suits applications where light emission must be directed perpendicular to the board surface. Verify compatibility with available forward voltage levels and current requirements for the driving logic circuits.

LED Indication - Discrete Part Context

This part belongs to Inolux's series of integrated RGB LEDs designed for space-saving applications. It combines multiple chip colors with driver electronics in a single surface-mount package. The 0603 form factor allows for high-density placement on printed circuit boards compared to discrete LED solutions.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not provided in the source material. Consult the manufacturer for direct equivalents or verify pinout and electrical parameter compatibility if considering alternative RGB SMD components from other manufacturers.
