IN-S63WTY

LED Indication - Discrete Overview

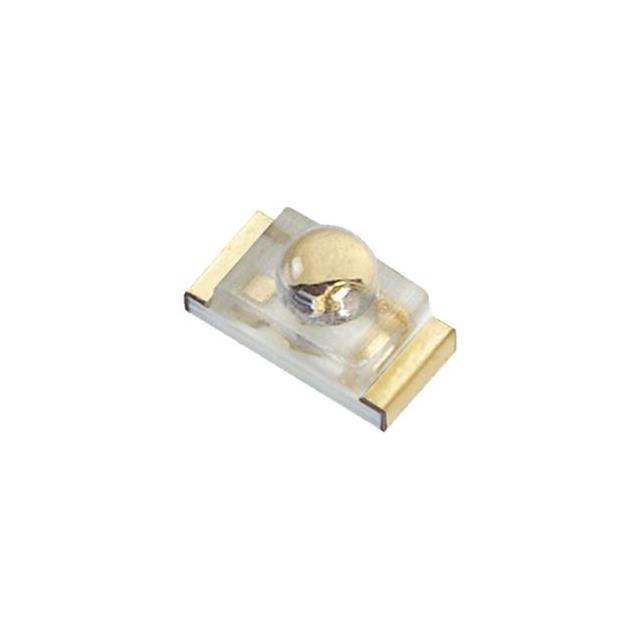

The IN-S63WTY is a single-color surface-mount LED from Inolux, designed for top-mount applications. It features a compact 0603 package with dimensions of 1.6 x 0.8 x 0.95 mm. The component emits yellow light at a wavelength of 590 nm and operates with a forward voltage of 2 VDC. Key electrical specifications include a typical luminous intensity of 400 mcd, a viewing angle of 35 degrees, and a maximum forward current of 20 mA. The optical power output is rated at 60 mW.

LED Indication - Discrete Feature Summary

• Low-profile 0603 form factor measuring 1.6 x 0.8 x 0.95 mm
• High brightness mono-color emission in the yellow spectrum
• Narrow 35-degree viewing angle for directional indication

LED Indication - Discrete Applications

• Status indication on electronic circuit boards
• Front panel illumination for consumer devices
• Indicator lights in industrial control equipment

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version provided by Inolux or authorized distributors to confirm exact binning parameters for wavelength and intensity. Ensure that the ordering suffix matches the required color and packaging configuration. Cross-reference the mechanical footprint with PCB design files to guarantee compatibility with the intended assembly process.

LED Indication - Discrete Selection Notes

Select this component when a low-profile, high-intensity yellow indicator is required for space-constrained designs. The 0603 package size offers a balance between visibility and board real estate. Consider the 35-degree beam width for applications requiring focused light output rather than wide-area diffusion.

LED Indication - Discrete Part Context

The IN-S63WTY belongs to the IN-S63WTx series, which includes various mono-color options within the same physical envelope. This series is characterized by its ultra-compact dimensions and high reliability standards suitable for mass production. It serves as a discrete solution for general-purpose lighting needs where standard packages are too large.

LED Indication - Discrete Replacement Considerations

Direct substitutes may include other 0603 yellow LEDs from different manufacturers, such as those from Everlight or Kingbright, provided they match the 1.6 x 0.8 x 0.95 mm footprint and 2V forward voltage characteristics. Verify thermal and optical performance equivalence before substitution.
