IN-S66DATRYG

LED Indication - Discrete Overview

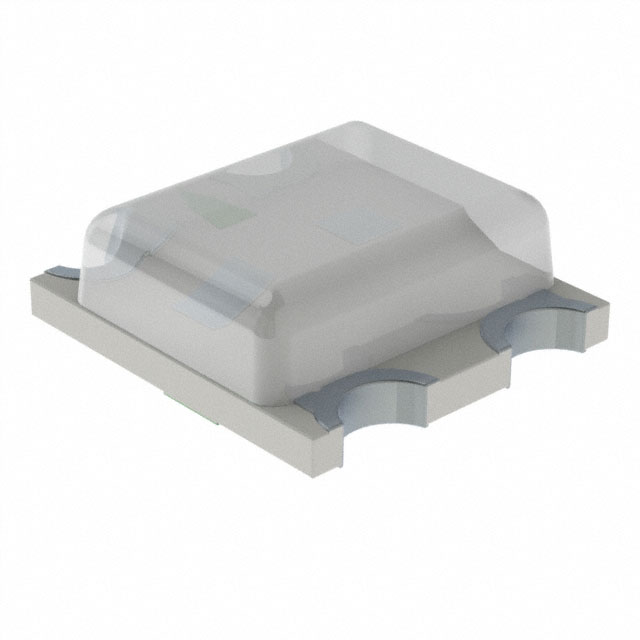

The Inolux IN-S66DATRYG is a surface-mount bicolor LED indicator featuring red and yellow-green chips in a compact 0606 package. Dimensions are 1.6 mm length, 1.5 mm width, and 0.55 mm height. It offers a 120-degree viewing angle for broad visibility. The component operates with a test current of 20 mA for both the red and yellow-green sections. Luminous intensity reaches 140 mcd for red and 35 mcd for yellow-green. This independent configuration supports status indication in space-constrained electronic designs.

LED Indication - Discrete Feature Summary

• Bicolor design combining red and yellow-green light sources within a single compact footprint
• Wide 120-degree viewing angle ensures clear visual signal detection from multiple perspectives
• Surface mount construction facilitates automated assembly and integration into dense PCB layouts

LED Indication - Discrete Applications

• Status indication on electronic control panels
• Signal indicators for consumer electronics devices
• Visual alert systems in industrial equipment

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm the exact color combination and binning specifications required for your application. Ensure that the procurement documentation matches the official Inolux datasheet for the IN-S66DATRYG part number. Cross-reference the luminous intensity values against your system's visibility requirements before finalizing orders.

LED Indication - Discrete Selection Notes

Select this component when a dual-color status indicator is needed in a minimal 0606 footprint. The 120-degree viewing angle makes it suitable for applications requiring wide-angle visibility. Consider the 20 mA drive current requirement for circuit design. Verify thermal management needs as surface-mount LEDs can generate heat during continuous operation.

LED Indication - Discrete Part Context

This component belongs to the IN-S66 series of SMD LEDs manufactured by Inolux Corporation. The series focuses on providing reliable lighting solutions for various electronic applications. The IN-S66DATRYG specifically addresses the need for compact bicolor indicators in modern device designs where space is limited but visual feedback is critical.

LED Indication - Discrete Replacement Considerations

Check the IN-S66TATRGB datasheet for potential alternative configurations within the same product family. Verify pin compatibility and dimensional constraints before substituting any other bicolor LED components.
