IN-S66TATRGB

LED Indication - Discrete Overview

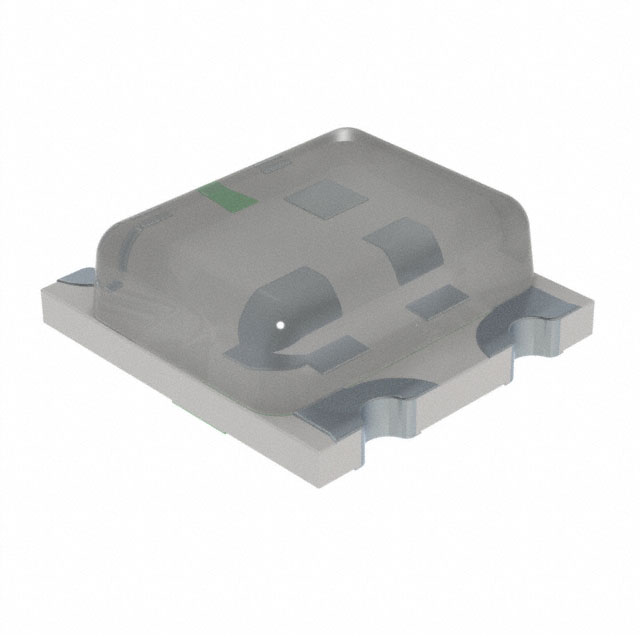

The IN-S66TATRGB is a surface-mount RGB LED from the IN-S66 series, manufactured by Inolux. It features a common anode configuration with a clear lens and rectangular shape. The component measures 1.60mm in length, 1.50mm in width, and has a maximum height of 0.55mm. Electrical specifications include a forward current of 20 mA and a viewing angle of 120 degrees. Forward voltage ratings are 2.2 V for red and 3.2 V for both green and blue channels. Power ratings are specified as 70 mW for red and 90 mW for green and blue.

LED Indication - Discrete Feature Summary

• Integrates red, green, and blue light-emitting diodes within a single compact surface-mount package.
• Utilizes a common anode electrical configuration to simplify circuit design.
• Features a clear lens designed to provide a wide 120-degree viewing angle.

LED Indication - Discrete Applications

• Status indication on electronic devices
• Backlighting for small displays
• Decorative lighting in consumer electronics

LED Indication - Discrete Procurement Notes

Verify that the specific part number matches the required common anode configuration and color output. Confirm that the 0606 package dimensions align with the PCB footprint requirements. Ensure that the forward voltage and current ratings are compatible with the driving circuitry to prevent damage or insufficient brightness.

LED Indication - Discrete Selection Notes

Select this component when a compact RGB solution with a common anode structure is required. Consider the 120-degree viewing angle for visibility needs. Evaluate the power dissipation limits of 70 mW and 90 mW against thermal management capabilities. Compare physical dimensions against available board space constraints.

LED Indication - Discrete Part Context

This component belongs to the IN-S66 series of SMD LEDs produced by Inolux Corporation. The series offers various configurations including different colors and pin arrangements. The IN-S66TATRGB specifically denotes the RGB variant with a common anode setup, providing a multi-color option within the standardized 0606 form factor.

LED Indication - Discrete Replacement Considerations

Consult official Inolux documentation for direct substitutes within the IN-S66 family. Verify compatibility regarding pinout, forward voltage, and physical dimensions before replacing.
