IN-S85ATR

LED Indication - Discrete Overview

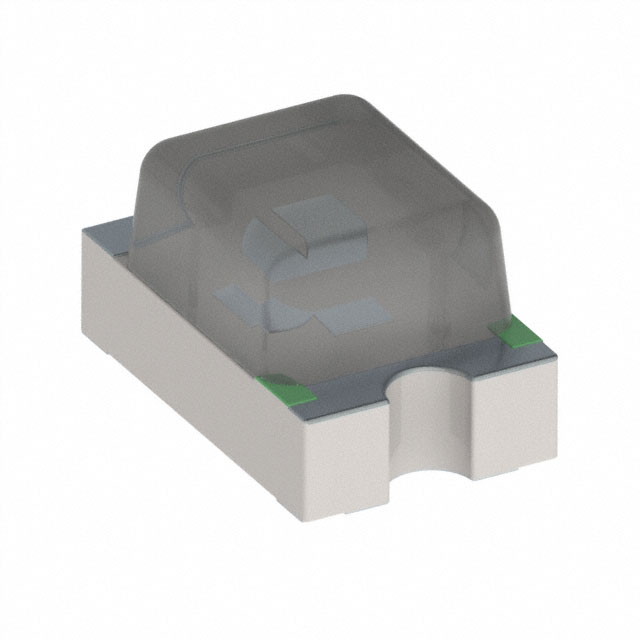

The IN-S85ATR is a red surface-mount LED from the IN-S85AT series by Inolux, housed in an 0805 (2012 metric) package. It features a clear lens with a rectangular shape and flat top design. The component emits light at a peak wavelength of 630nm and a dominant wavelength of 625nm. Typical forward voltage is 2.2V at a test current of 20mA, producing an intensity of 140mcd. The viewing angle is 120 degrees, and dimensions are 2.00mm x 1.25mm x 1.10mm max.

LED Indication - Discrete Feature Summary

• Standard configuration with clear lens for high visibility
• Wide 120-degree viewing angle for broad signal coverage
• RoHS3 compliant construction suitable for modern electronics

LED Indication - Discrete Applications

• Status indication on electronic circuit boards
• Panel indicator lights for consumer devices
• Visual signaling in industrial control systems

LED Indication - Discrete Procurement Notes

Verify the manufacturer part number IN-S85ATR against official Inolux documentation to ensure authenticity. Confirm that the received components match the specified 0805 package dimensions and electrical characteristics. Check for RoHS3 compliance markings as required by project specifications. Ensure proper handling procedures are followed due to Moisture Sensitivity Level 3 classification.

LED Indication - Discrete Selection Notes

Select this component when a red visual indicator is required in space-constrained designs utilizing the standard 0805 footprint. Consider the 120-degree viewing angle for applications requiring wide-angle visibility. Evaluate the 2.2V forward voltage drop against available drive voltages to ensure proper circuit operation without excessive current limiting resistance.

LED Indication - Discrete Part Context

This device belongs to the IN-S85AT series of surface-mount LEDs manufactured by Inolux. The series offers various colors including amber and yellow variants sharing identical physical dimensions and mounting characteristics. The IN-S85ATR specifically provides red emission properties while maintaining the standardized form factor common across the family for consistent PCB layout practices.

LED Indication - Discrete Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific model.
