IN-S85CS5R

LED Indication - Discrete Overview

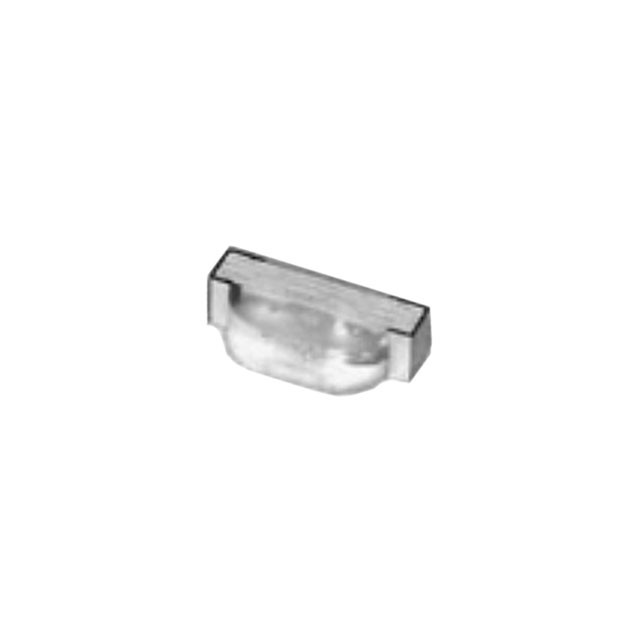

The IN-S85CS5R is a red light-emitting diode from Inolux, designed for surface-mount technology applications. It features a 2-SMD, No Lead package with dimensions of 2.10mm in length and 1.00mm in width, and a maximum height of 0.70mm. The component emits red light with a peak wavelength of 625nm and a viewing angle of 120 degrees. Electrical characteristics include a forward voltage of 2V and a forward drive current of 5mA. The luminous intensity is rated at 35mcd. The lens is colorless with a semitube shape, measuring 1.7mm by 0.6mm.

LED Indication - Discrete Feature Summary

• Side-view surface-mount design suitable for compact PCB layouts
• Wide 120-degree viewing angle for broad visibility
• Semitube lens structure for directional light emission

LED Indication - Discrete Applications

• Panel status indication
• Equipment power indicators
• Consumer electronics signaling

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version provided by Inolux to confirm electrical tolerances and thermal limits. Ensure that the ordering suffix matches the required packaging configuration. Cross-reference pinout diagrams with target PCB footprints to prevent mounting errors during assembly processes.

LED Indication - Discrete Selection Notes

Select this component when a low-profile red indicator is required for space-constrained designs. The 0805 form factor allows for high-density placement. Consider the 2V forward voltage drop when designing series resistor networks or constant current driver circuits to ensure proper biasing and longevity.

LED Indication - Discrete Part Context

This part belongs to Inolux's discrete LED indication line, specifically within the SMD category. It utilizes standard 0805 metric footprint dimensions, facilitating compatibility with existing manufacturing equipment and automated pick-and-place systems used for similar surface-mount components.

LED Indication - Discrete Replacement Considerations

Direct substitutes may include other 0805 red LEDs with comparable forward voltage and intensity ratings. Verify mechanical compatibility and spectral output before swapping. Consult official manufacturer cross-reference lists for validated alternatives.
