IN-S85DATRG

LED Indication - Discrete Overview

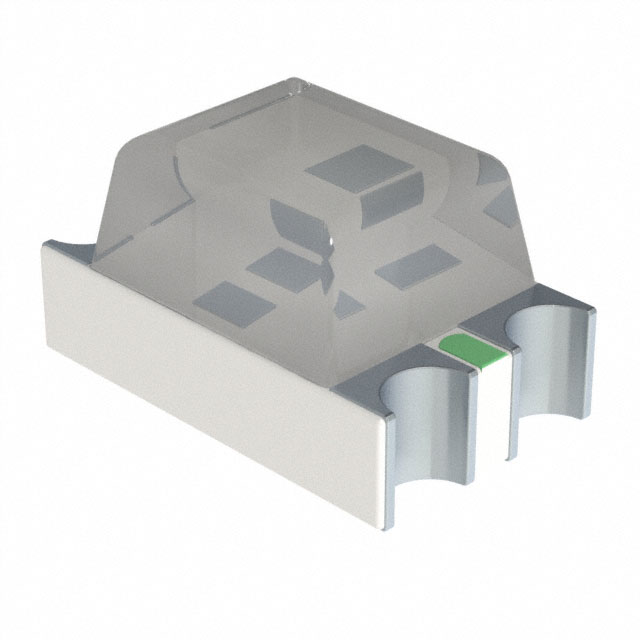

The IN-S85DATRG is a surface-mount bi-color LED from Inolux, packaged in an 0805 (2.00mm L x 1.25mm W) footprint with a maximum height of 1.10mm. It features independent red and green emitters within a clear rectangular lens. The green channel operates at a typical forward voltage of 3.2V with a millicandela rating of 450mcd, while the red channel functions at 2.2V with 140mcd. Both channels share a 75mW power rating and offer a 120-degree viewing angle. The component is RoHS compliant and holds an MSL level of 3.

LED Indication - Discrete Feature Summary

• Bi-color configuration with independent red and green emission channels
• Top-view design with a clear rectangular lens for optimal visibility
• Wide 120-degree viewing angle suitable for panel indicators

LED Indication - Discrete Applications

• Status indication on electronic circuit boards
• Power supply status signaling
• Medical device front panels
• Consumer electronics interface lighting

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure the correct binning and wavelength specifications match the design requirements. Confirm moisture sensitivity handling procedures are followed during assembly, as the component is rated at MSL level 3. Cross-reference the datasheet for precise thermal management guidelines to maintain reliability under operating conditions.

LED Indication - Discrete Selection Notes

Select this component when space constraints require an 0805 form factor but dual-color feedback is necessary. The high brightness of the green emitter makes it suitable for applications requiring distinct visual alerts. Ensure the driving circuitry can accommodate the different forward voltage requirements of the red and green segments independently.

LED Indication - Discrete Part Context

This part belongs to the IN-S85 series of SMD LEDs designed for PCB mounting. It utilizes a standard 0805 package size, allowing for automated pick-and-place assembly. The series focuses on providing reliable discrete indication solutions for compact electronic devices where board real estate is limited.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other 0805 bi-color LEDs from manufacturers such as Kingbright or Everlight, provided they match the 2.0x1.25mm dimensions and electrical characteristics. Verify that alternative parts meet the same MSL and RoHS compliance standards.
