INL-3AY30

LED Indication - Discrete Overview

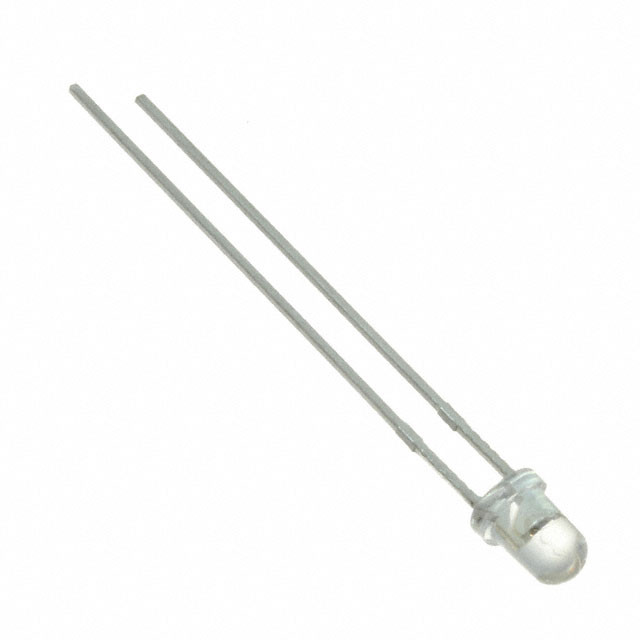

The INL-3AY30 is a single-color yellow LED from the Inolux INL-3AX30 series, designed for through-hole mounting. It features a 3mm T-1 round lens with a clear, dome-style epoxy enclosure. The component emits light at a peak wavelength of 592nm and a dominant wavelength of 610nm. Typical forward voltage is 2.6V at a test current of 20mA. It offers a viewing angle of 30 degrees and a luminous intensity of 460mcd. Dimensions include a 3.05mm diameter and a maximum height of 8.65mm.

LED Indication - Discrete Feature Summary

• Through-hole radial lead configuration suitable for standard PCB assembly
• High brightness output with 460mcd intensity in a compact 3mm package
• Clear epoxy lens design providing a focused 30-degree viewing angle

LED Indication - Discrete Applications

• Panel indicator lights for electronic equipment
• Status indication in control systems
• Visual signaling in consumer appliances

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version to confirm electrical tolerances and thermal characteristics. Ensure compatibility with automated placement equipment regarding lead form and body dimensions. Check RoHS compliance status against project requirements. Confirm availability of replacement components if supply chain disruptions occur.

LED Indication - Discrete Selection Notes

Select this component when a bright yellow visual indicator is required in a space-constrained design. The 3mm size allows for dense panel layouts compared to larger packages. Consider the 30-degree beam width for applications requiring directed visibility rather than wide-area diffusion. Verify operating temperature ranges match the environmental conditions of the final product.

LED Indication - Discrete Part Context

This part belongs to the INL-3AX30 series of 3mm through-hole LEDs. The series includes variants with different colors such as amber (INL-3AA30) and red. These components are standardized for general-purpose indication tasks. The manufacturer provides consistent mechanical dimensions across the series to simplify board layout processes.

LED Indication - Discrete Replacement Considerations

Compatible substitutes within the same series include INL-3AA30 for amber color options. Other manufacturers offering equivalent 3mm T-1 yellow LEDs may be considered if pinout and dimensional specifications match exactly.
