IP-0242H2

Power Line Filter Modules Overview

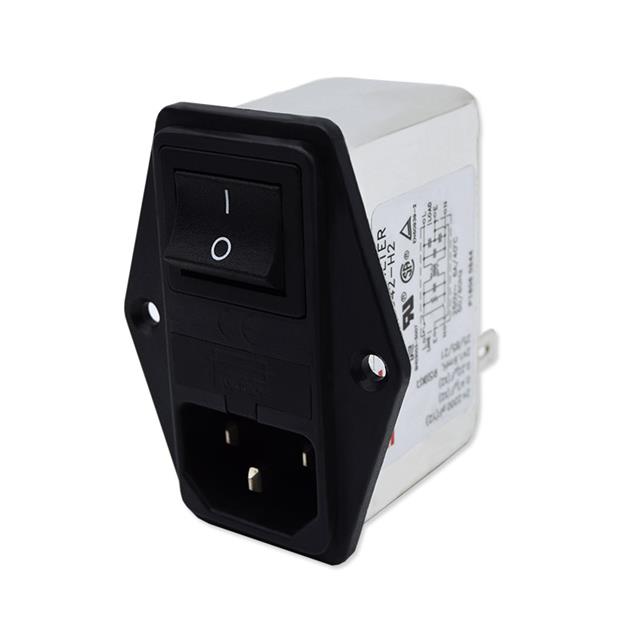

The DIT IP-0242H2 is a single-phase EMC/EMI line filter module designed for AC power line noise suppression. It operates at a rated current of 2 A and a voltage of 250VAC within the 50–60Hz frequency range. The unit features a single-stage filtering architecture compliant with IEC 320-C14 standards, utilizing quick-connect terminals for integration.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference (EMI) and radio frequency interference (RFI) suppression for AC power lines
• Features a compact single-stage filtering design optimized for space-constrained applications
• Equipped with quick-connect terminals to facilitate rapid assembly and maintenance

Power Line Filter Modules Applications

• Consumer electronics power input stages
• Industrial control equipment noise reduction
• Medical device power supply filtering

Power Line Filter Modules Procurement Notes

Verify that the specific part number IP-0242H2 matches the required 2A rating and 250VAC specification. Confirm terminal type compatibility with existing PCB or wire harness designs. Ensure compliance with regional safety certifications required for the final product assembly.

Power Line Filter Modules Selection Notes

Select this component when a low-current, single-phase EMI filter is required for AC mains inputs. Consider the physical dimensions and mounting orientation relative to the enclosure design. Evaluate thermal performance under continuous load conditions to ensure reliability.

Power Line Filter Modules Part Context

This component belongs to DIT's series of AC line filters, which are engineered to meet international safety and EMC standards. These modules are commonly used in devices requiring strict adherence to emission limits while maintaining stable power delivery.

Power Line Filter Modules Replacement Considerations

Consult official manufacturer substitution lists for verified equivalents. Ensure any replacement maintains identical current ratings, voltage specifications, and terminal configurations to guarantee functional compatibility.
