IP-0442H2

Power Line Filter Modules Overview

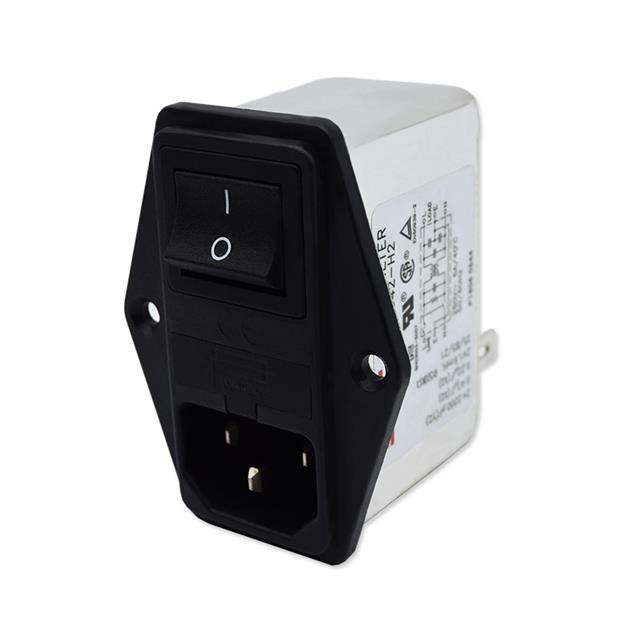

The DIT IP-0442H2 is a single-phase EMC/EMI line filter module designed for AC power line noise suppression. It supports a current rating of 4 A and operates at voltages up to 250 VAC within the 50 ~ 60 Hz frequency range. The unit features a single-stage filtering architecture and utilizes an IEC 320-C14 connector interface. Termination is achieved via quick connect terminals, facilitating straightforward integration into electronic equipment requiring electromagnetic interference mitigation.

Power Line Filter Modules Feature Summary

• Single-stage EMC/EMI line filtering for AC power applications
• IEC 320-C14 input connector interface
• Quick connect terminal termination method

Power Line Filter Modules Applications

• Electronic equipment requiring AC power line noise suppression
• Industrial control systems with sensitive electronics
• Medical devices needing EMI mitigation

Power Line Filter Modules Procurement Notes

Verify that the required current rating of 4 A and voltage of 250 VAC align with your system specifications. Confirm compatibility with the IEC 320-C14 inlet on the receiving equipment. Ensure the quick connect terminal style matches your wiring harness or PCB layout requirements before procurement.

Power Line Filter Modules Selection Notes

Select this component when a compact, single-stage solution is sufficient for EMI reduction in 4 A circuits. Consider the IEC 320-C14 interface constraint against available mating connectors. Evaluate if the quick connect termination meets assembly speed and reliability needs compared to screw or solder options.

Power Line Filter Modules Part Context

This part belongs to the DIT series of power line filter modules. These components are engineered to attenuate conducted electromagnetic interference on AC mains lines. The specific model integrates standard industrial interfaces to simplify installation in various electrical enclosures and device chassis.

Power Line Filter Modules Replacement Considerations

Check datasheets for equivalent filters offering identical 4 A ratings and IEC 320-C14 interfaces. Verify that replacement units maintain comparable attenuation characteristics at 50/60 Hz. Ensure physical dimensions and terminal types match existing mounting constraints.
