IP-0642H2

Power Line Filter Modules Overview

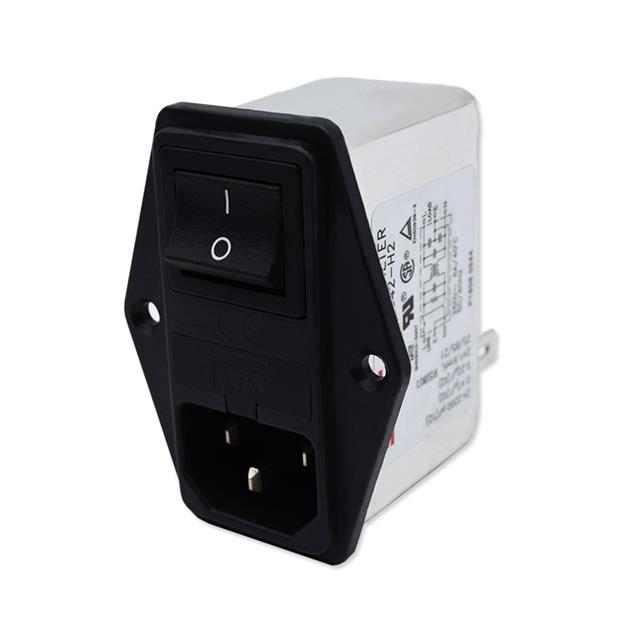

The DIT IP-0642H2 is a single-phase EMC/EMI power line filter module designed for AC mains applications. It features a rated voltage of 250VAC and a current capacity of 6A, operating at frequencies between 50Hz and 60Hz. The unit utilizes an IEC 320-C14 connector interface with quick-connect terminals for installation. Packaged in boxes, this component serves general-purpose filtering requirements.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for single-phase AC power lines
• Integrates an IEC 320-C14 inlet connector for standardized equipment mounting
• Utilizes quick-connect terminal technology for simplified circuit integration

Power Line Filter Modules Applications

• General-purpose electronic equipment power input stages
• Single-phase AC power supply filtering modules
• EMC compliance enhancement for consumer electronics

Power Line Filter Modules Procurement Notes

Verify the specific IEC 320-C14 mating compatibility with your equipment's inlet before procurement. Confirm that the 6A current rating and 250VAC voltage specifications align with your system's electrical requirements. Ensure the quick-connect terminal type matches your wiring harness or PCB layout constraints to guarantee proper physical and electrical integration.

Power Line Filter Modules Selection Notes

Select this component when a compact, single-phase EMI filter with integrated IEC inlet connectivity is required. The 6A rating suits moderate power loads, while the 250VAC specification covers standard global mains voltages. Consider the box packaging format for bulk handling efficiency if applicable to your assembly process.

Power Line Filter Modules Part Context

This part belongs to the IP series of power line filter modules manufactured by DIT. These components are engineered to meet basic EMC standards for AC power inputs. The IP-0642H2 specifically addresses noise reduction in single-phase systems using a modular design approach.

Power Line Filter Modules Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
