IP2004TR

Voltage Regulators - DC DC Switching Regulators Overview

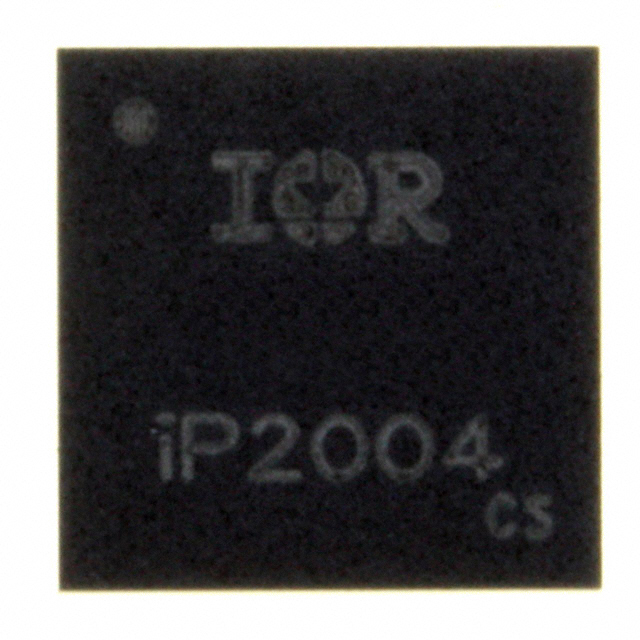

The IP2004TR is a positive adjustable buck switching regulator IC from Infineon Technologies, designed for high-power applications. It features synchronous rectification and operates with a switching frequency range of 250kHz to 1.5MHz. The device delivers an output current up to 40A with an adjustable output voltage between 0.8V and 8V. It utilizes a Power Block (LGA) package for surface mount installation. The junction operating temperature range extends from -40°C to 125°C.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Positive adjustable buck switching regulator architecture
• Synchronous rectifier implementation for high efficiency
• Wide adjustable output voltage capability
• High continuous output current delivery

Voltage Regulators - DC DC Switching Regulators Applications

• High-power point-of-load regulation
• Industrial power distribution systems
• Telecommunications equipment power supplies

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm the specific LGA package variant matches design requirements. Check for obsolescence status as this model may be discontinued. Ensure thermal management solutions align with the 125°C junction temperature limit. Validate supply chain integrity to avoid counterfeit components in critical infrastructure projects.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Evaluate thermal performance under maximum load conditions given the 40A output capability. Consider the wide switching frequency range for EMI filtering requirements. Assess input voltage compatibility with the adjustable output range. Verify footprint compatibility with existing PCB layouts due to the LGA package type. Review transient response characteristics for sensitive downstream loads.

Voltage Regulators - DC DC Switching Regulators Part Context

This component belongs to Infineon's power management integrated circuit portfolio, specifically within the DC-DC converter category. It represents a solution for efficient voltage step-down in compact form factors. The technology focuses on high-current density applications requiring precise voltage regulation and robust thermal performance in industrial environments.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Contact Infineon Technologies directly for current product lifecycle status and recommended alternatives if this unit is obsolete.
